1. Battery life: 2.5 hours
2. Microprocessor: RP2040
3. Power supply mode: single 18650 2200MAH (not included) charging interface: microUSB
4. Communication method: Bluetooth 5.0
5. Remote control method: mobile APP/infrared remote control

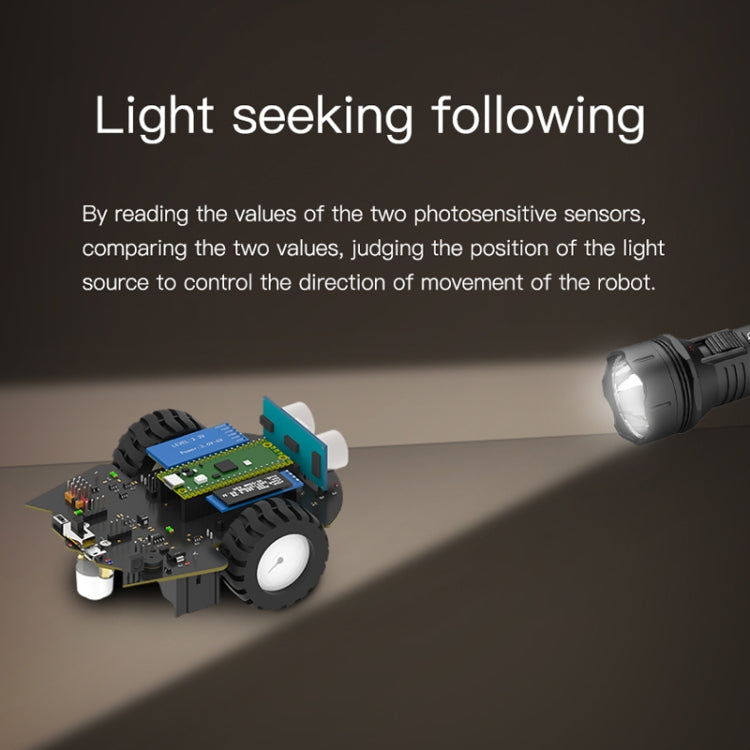

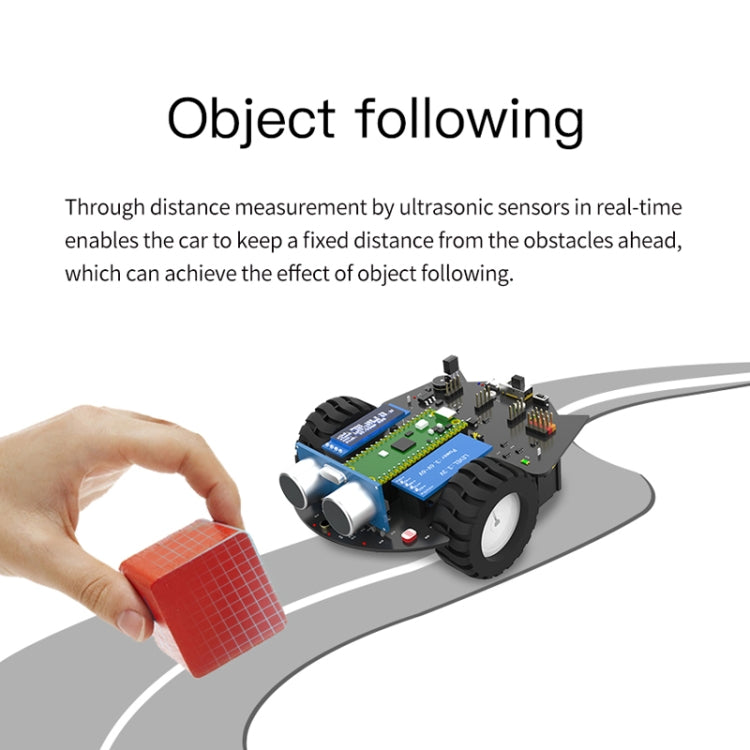

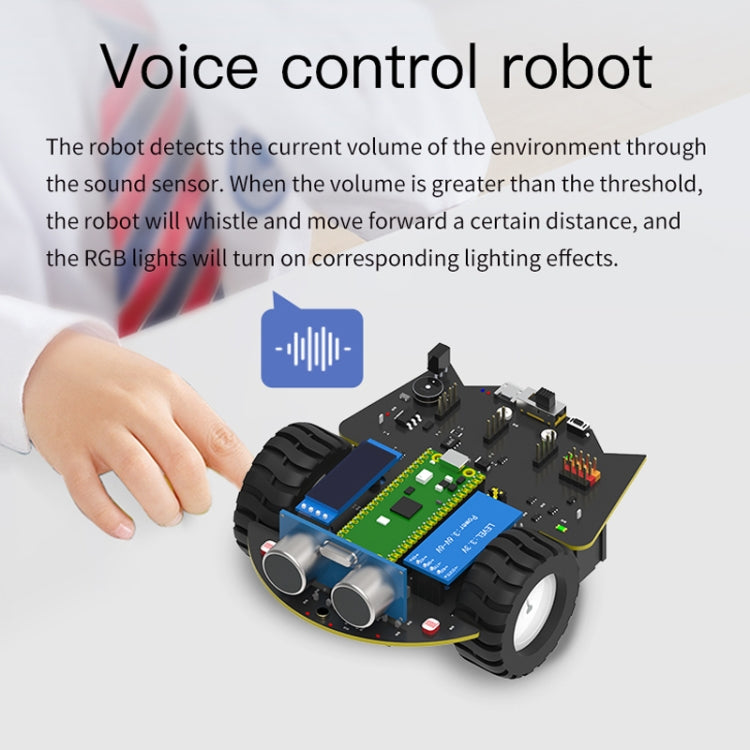

6. Input device: photoresistor, four-way line inspection, sound sensor, ultrasonic, bluetooth, infrared receiver

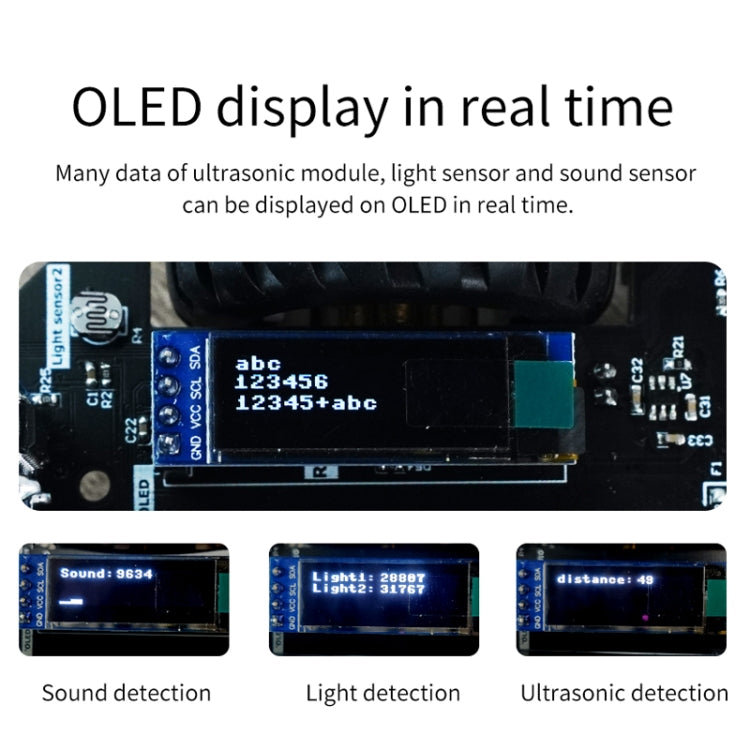

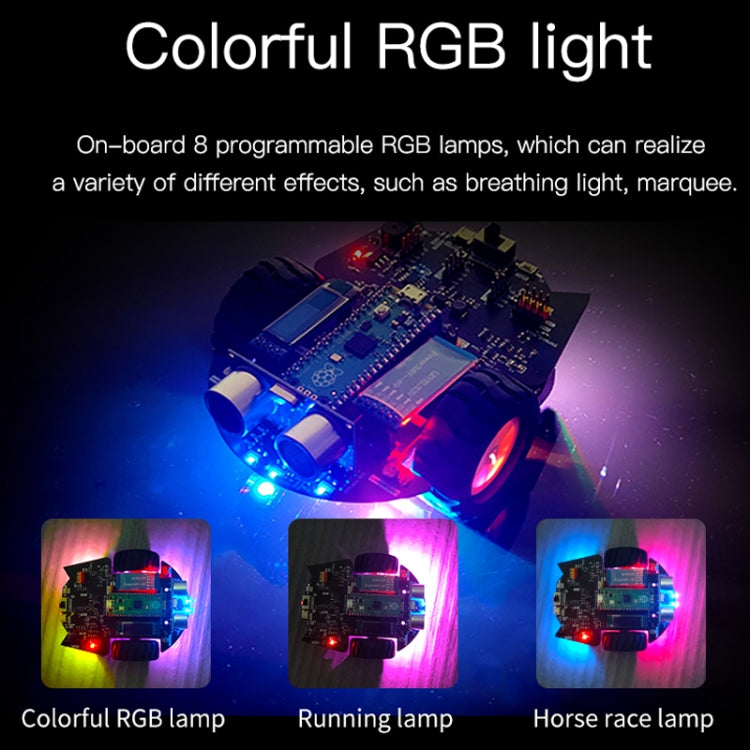

7. Output device: OLED display, passive buzzer, N20 motor, steering gear interface, programmable RGB lights
8. Safety protection: overcurrent protection, overcharge protection, motor stall protection Motor solution: N20 motor x2
9. Dimensions after assembly: 120x96x56mm
10. Weight after assembly: 182 grams

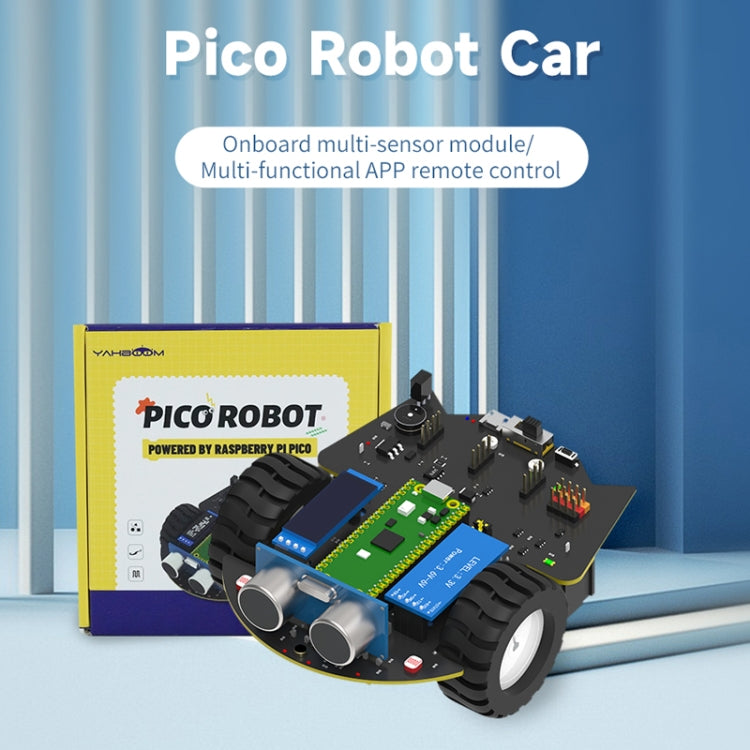

11. The Raspberry Pi Pico robot is a compact and cost-effective educational programmable two-wheel-drive smart car

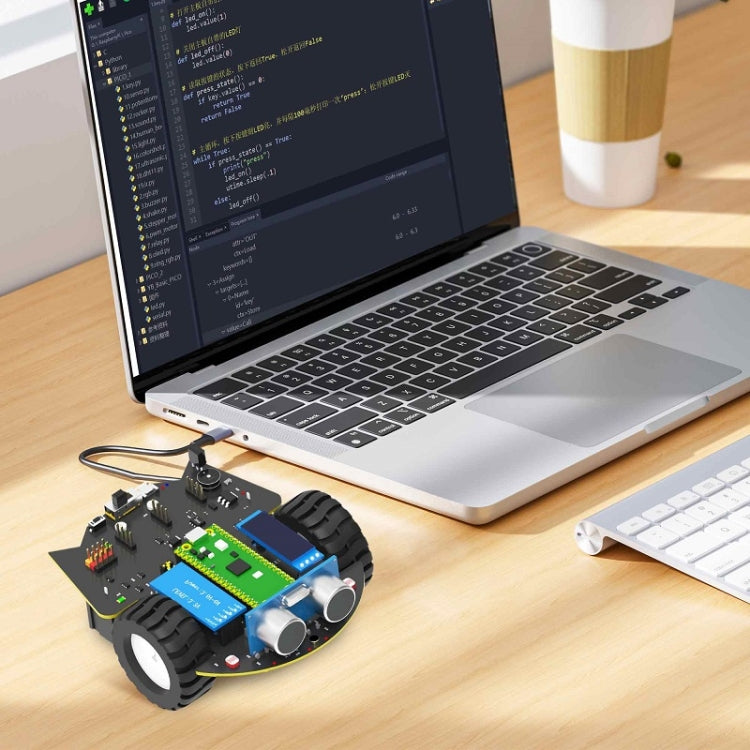

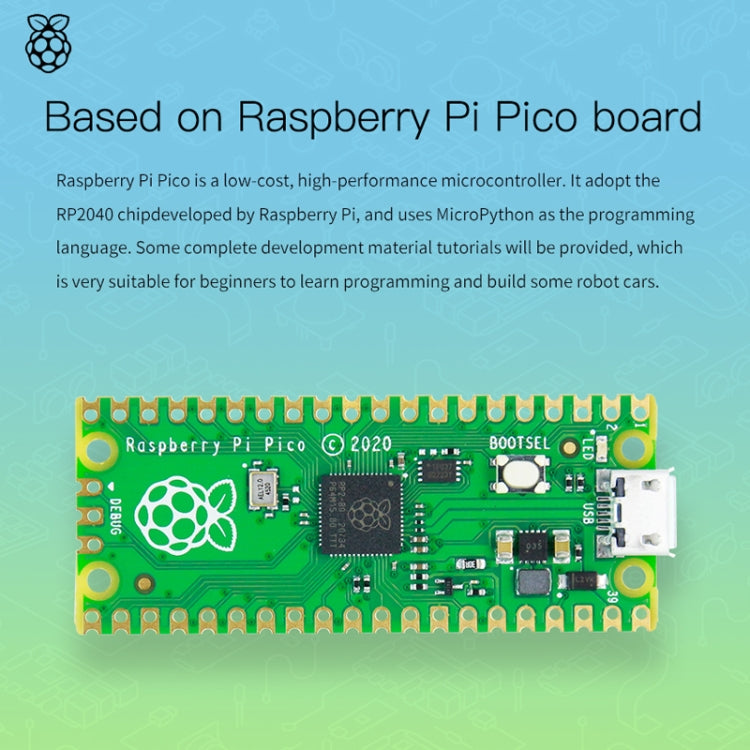

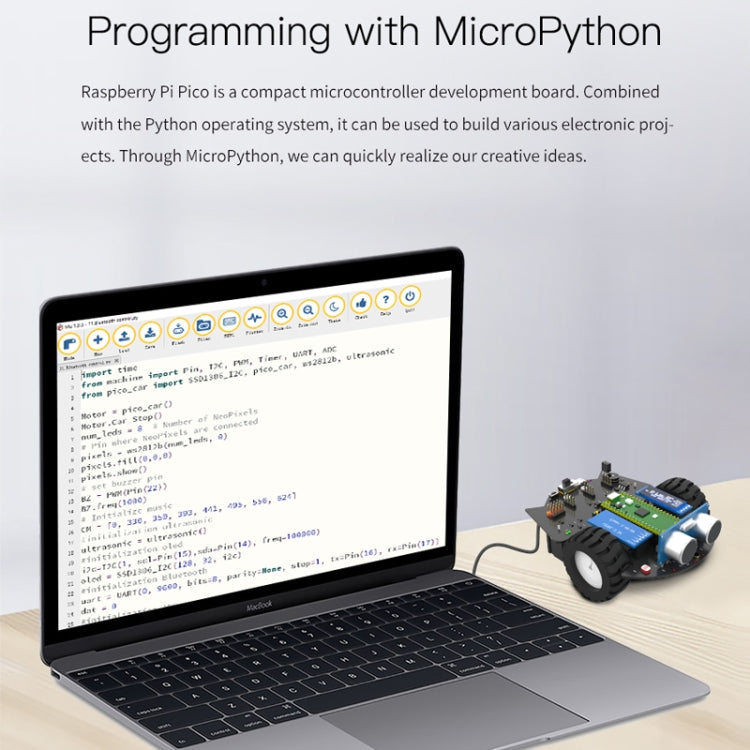

12. Based on Raspberry Pi Pico, using MicroPython as a programming language, combined with onboard sensors, many interesting functions are realized

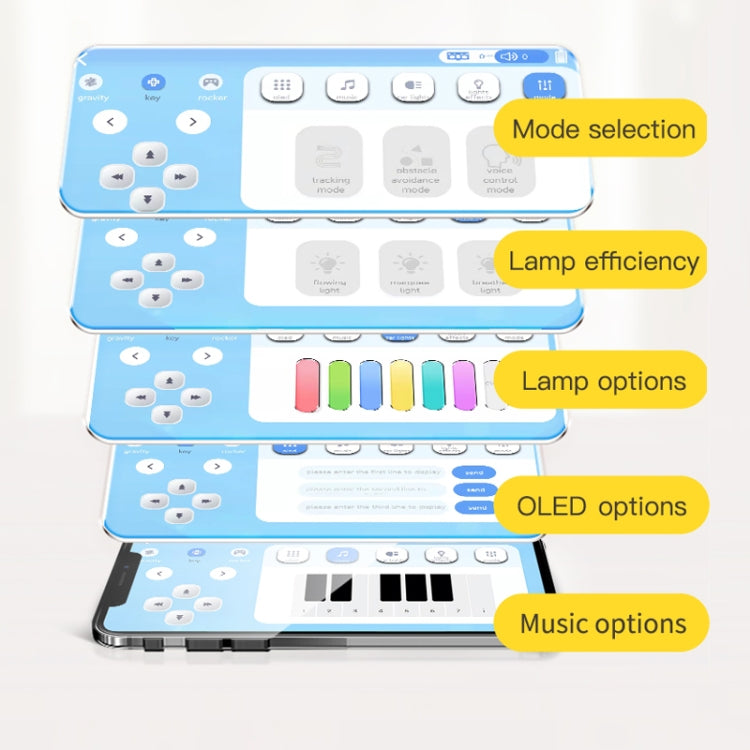

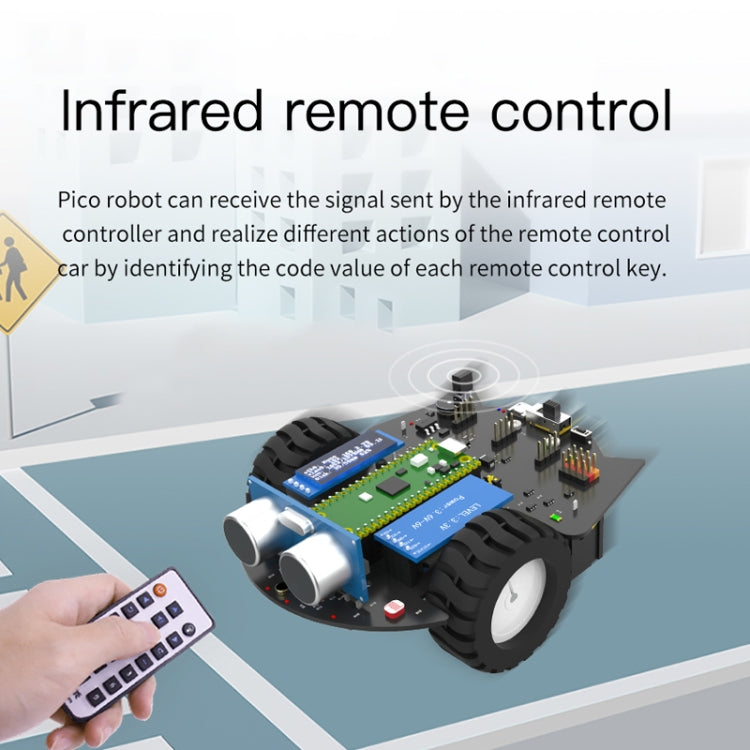

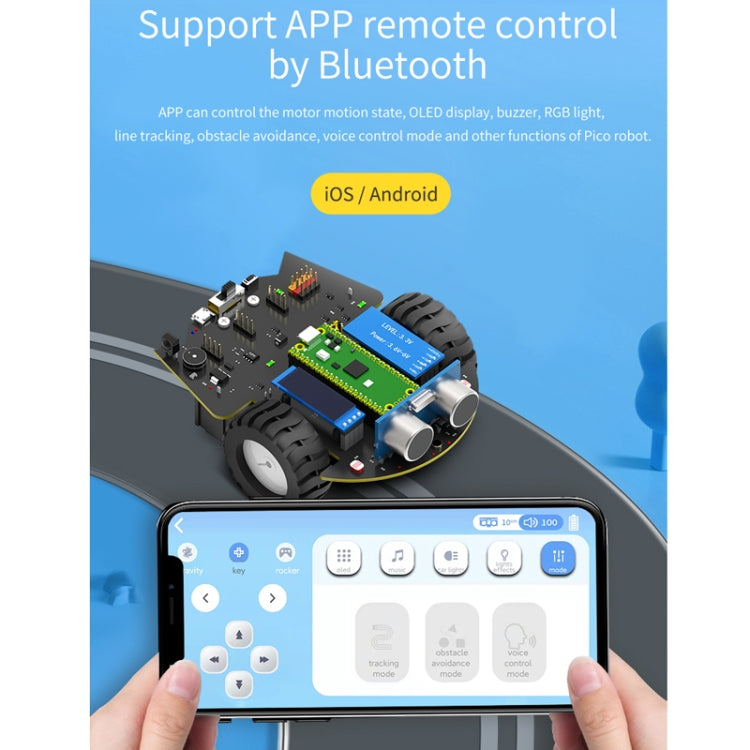

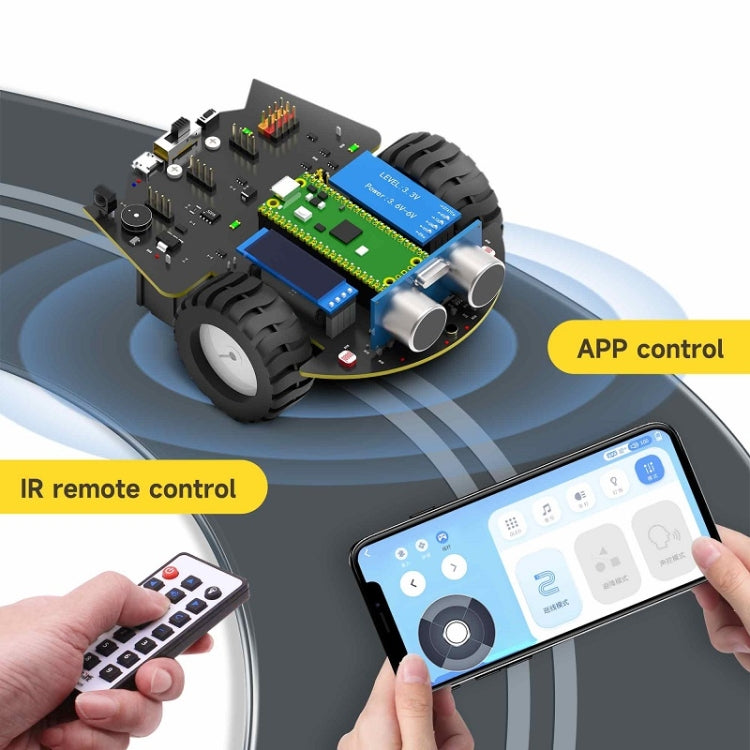

13. The robot has an infrared receiver and a Bluetooth module, and users can remotely control it through an infrared remote control or a mobile phone APP
14. The servo interface, IIC interface, and public pins are reserved on the expansion board to facilitate users to expand more functions
15. Small size, reasonable layout, high cost performance

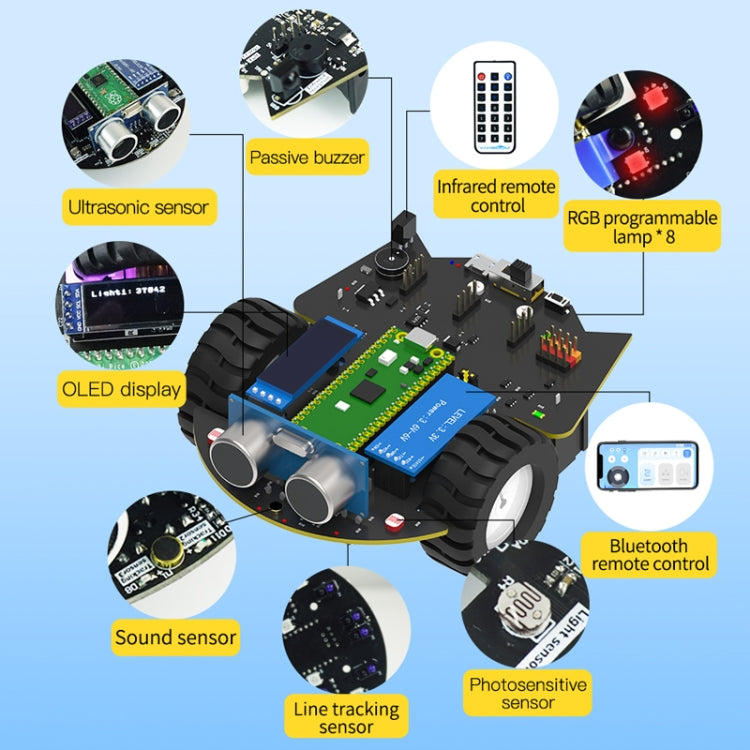

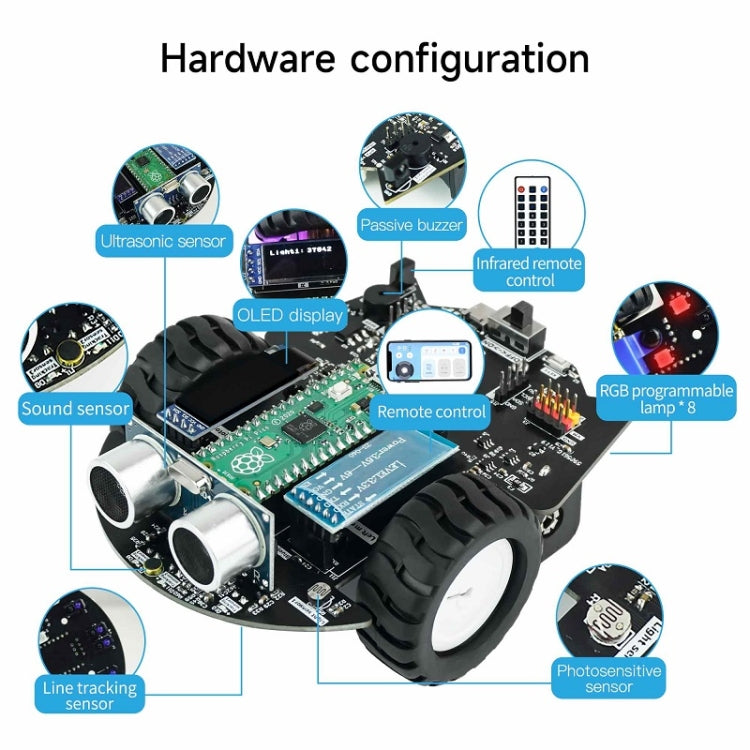

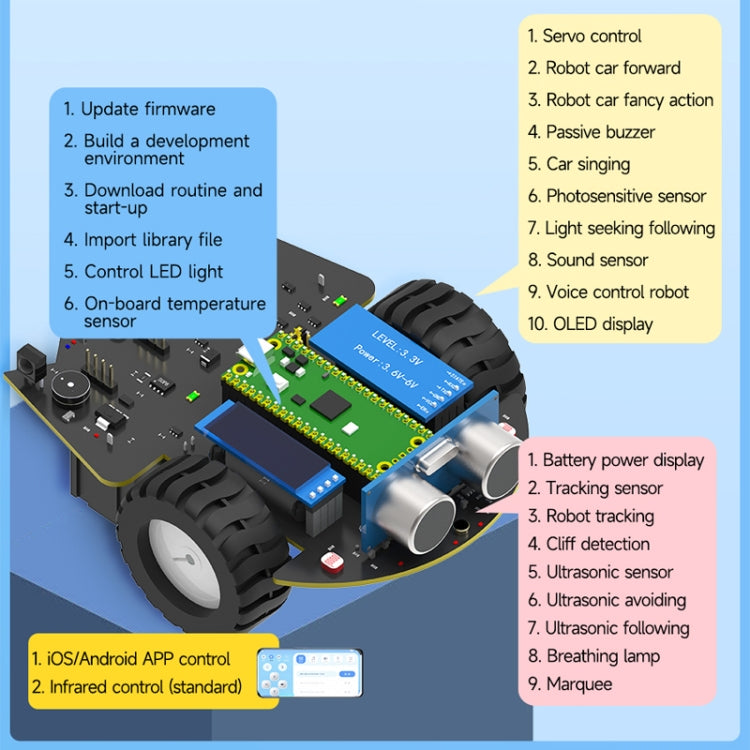

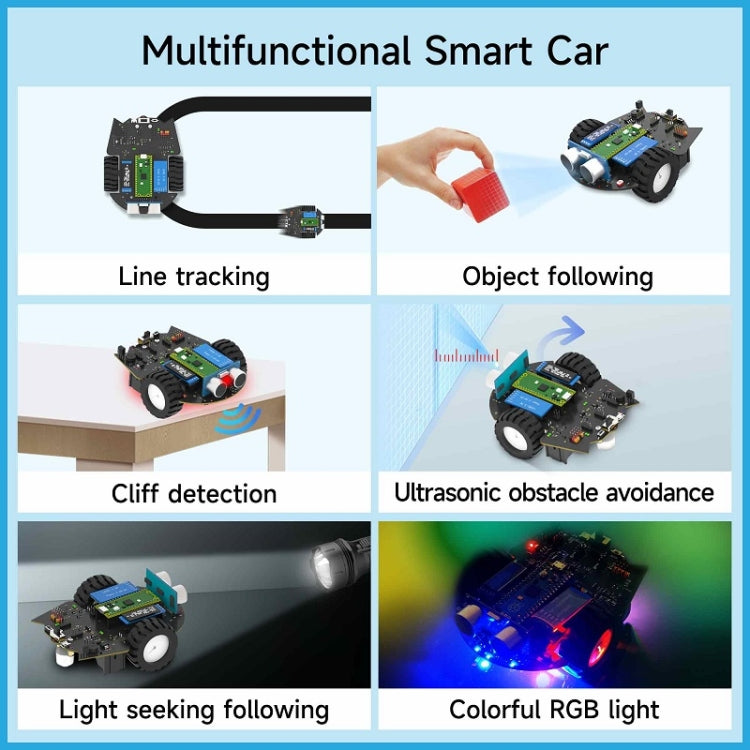

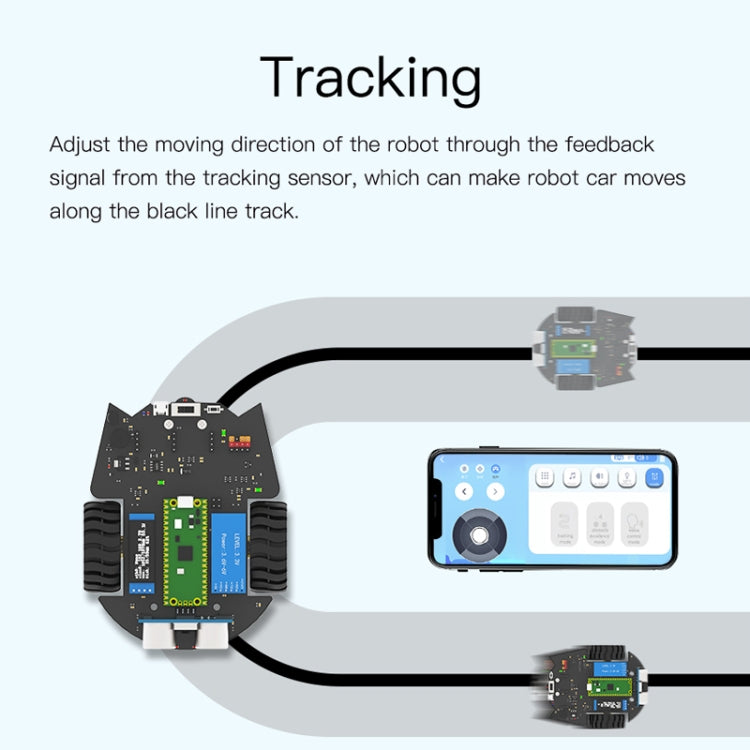

16. Lots of onboard resources: tracking sensor, ultrasonic, light sensor, sound sensor, buzzer, bluetooth module, OLED display, infrared receiver
17. Reserve a variety of expansion interfaces: IIC interface, servo interface, GPIO interface

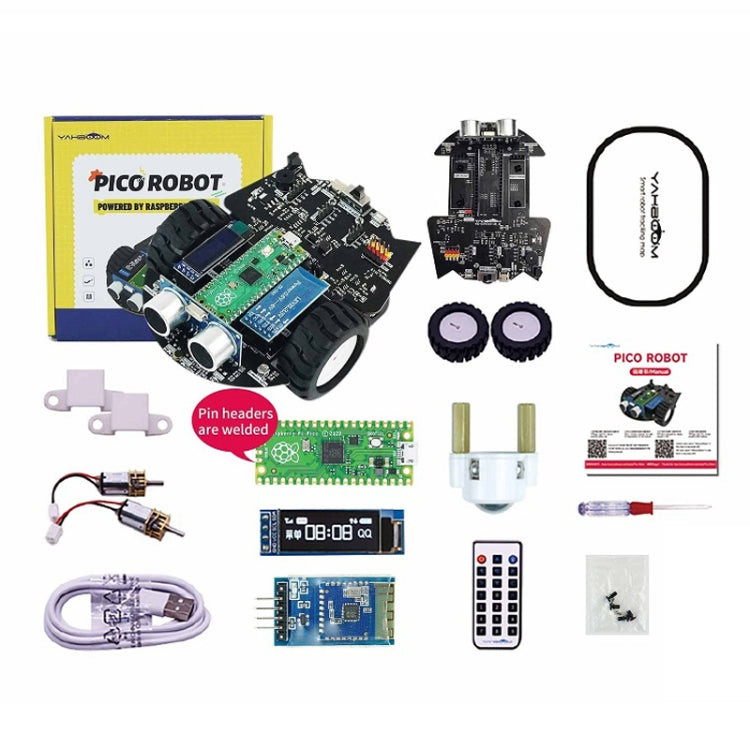

packing list:
- Pico car expansion board x 1
- Pico motherboard x 1
- N20 motor x 1
- N20 motor mount x 1
- N20 Universal Wheel x 1
- OLED screen x 1
- 5.0 Bluetooth module x 1
- Micro USB cable x 1
- Instructions x 1
- Remote control x 1
- Screw bag x 1
- Screwdriver x 1
- Tracking Map x 1
- N20 tire x 1
Specification:
