STM32H750VBT6
STM32H750VBT6
Не удалось загрузить сведения о доступности самовывоза

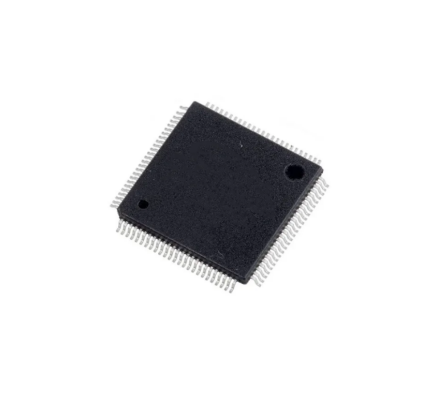

STMicroelectronics STM32H750VBT6, 32bit ARM Cortex-M7 Microcontroller, STM32, 480MHz, 128 kB Flash, 100-Pin LQFP
Technical Datasheet:
Product Details
STM32H750xB devices are based on the high-performance Arm® Cortex®-M7 32-bit RISC core operating at up to 480 MHz. The Cortex® -M7 core features a floating point unit (FPU) which supports Arm® double-precision (IEEE 754 compliant) and single-precision data-processing instructions and data types. STM32H750xB devices support a full set of DSP instructions and a memory protection unit (MPU) to enhance application security.
STM32H750xB devices incorporate high-speed embedded memories with a Flash memory of 128 Kbytes, up to 1 Mbyte of RAM (including 192 Kbytes of TCM RAM, up to 864 Kbytes of user SRAM and 4 Kbytes of backup SRAM), as well as an extensive range of enhanced I/Os and peripherals connected to APB buses, AHB buses, 2x32-bit multi-AHB bus matrix and a multi layer AXI interconnect supporting internal and external memory access.
Specifications
| Attribute | Value |
| Family Name | STM32 |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 100 |
| Device Core | ARM Cortex-M7 |
| Data Bus Width | 32bit |
| Program Memory Size | 128 kB |
| Maximum Frequency | 480MHz |
| RAM Size | 512 kB |
| USB Channels | 2 |
| ADC Channels | 16 |
| Number of SPI Channels | 6 |
| Typical Operating Supply Voltage | 1.71 → 3.6 V |
| ADC Resolution | 12bit |
| Number of USART Channels | 4 |
| Minimum Operating Temperature | -40 °C |
| Width | 14.2mm |
| Height | 1.45mm |
| Timer Resolution | 16 bit, 32bit |
| Dimensions | 14.2 x 14.2 x 1.45mm |
| Maximum Operating Temperature | +85 °C |
| Program Memory Type | Flash |
| Number of ADC Units | 3 |
| Number of UART Channels | 4 |
| Instruction Set Architecture | RISC |
| Number of CAN Channels | 1 |
| Number of I2C Channels | 4 |
| Number of Timers | 2 |
| ADCs | 3 (16 x 12 bit) |
| Number of Ethernet Channels | 1 |
| Length | 14.2mm |
