STM32F303CCT6
STM32F303CCT6
Не удалось загрузить сведения о доступности самовывоза

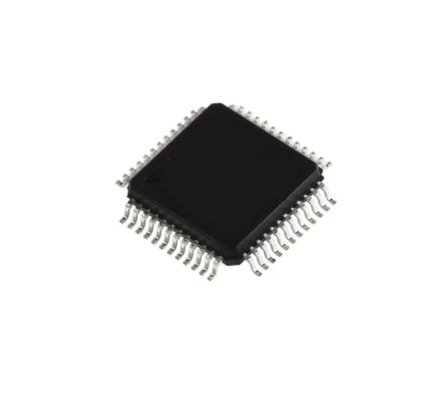

STMicroelectronics STM32F303CCT6, 32bit ARM Cortex-M4 Microcontroller, STM32, 72MHz, 256 kB Flash, 48-Pin LQFP
Technical Datasheet:
Product Details
The STM32F303xB/STM32F303xC family is based on the high-performance Arm® Cortex®-M4 32-bit RISC core with FPU operating at a frequency of up to 72 MHz, and embedding a floating point unit (FPU), a memory protection unit (MPU) and an embedded trace macrocell (ETM). The family incorporates high-speed embedded memories (up to 256 Kbytes of Flash memory, up to 40 Kbytes of SRAM) and an extensive range of enhanced I/Os and peripherals connected to two APB buses. The devices offer up to four fast 12-bit ADCs (5 Msps), seven comparators, four operational amplifiers, up to two DAC channels, a low-power RTC, up to five general-purpose 16-bit timers, one general-purpose 32-bit timer, and two timers dedicated to motor control. They also feature standard and advanced communication interfaces: up to two I2Cs, up to three SPIs (two SPIs are with multiplexed full-duplex I2Ss), three USARTs, up to two UARTs, CAN and USB. To achieve audio class accuracy, the I2S peripherals can be clocked via an external PLL.
Specifications
| Attribute | Value |
| Family Name | STM32 |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 48 |
| Device Core | ARM Cortex-M4 |
| Data Bus Width | 32bit |
| Program Memory Size | 256 kB |
| Maximum Frequency | 72MHz |
| RAM Size | 40 kB |
| USB Channels | 1 |
| Number of PWM Units | 1 |
| ADC Channels | 15 |
| Number of SPI Channels | 3 |
| Typical Operating Supply Voltage | 2 → 3.6 V |
| Maximum Operating Temperature | +85 °C |
| Length | 7.2mm |
| Number of ADC Units | 4 |
| Number of I2C Channels | 2 |
| Number of Timers | 2 |
| ADCs | 4 (15 x 12 bit) |
| Program Memory Type | Flash |
| Number of CAN Channels | 1 |
| Pulse Width Modulation | 1 (31 x 32 bit) |
| Number of USART Channels | 3 |
| PWM Resolution | 32bit |
| Timer Resolution | 16 bit, 32bit |
| Instruction Set Architecture | RISC |
| PWM Channels | 31 |
| Width | 7.2mm |
| ADC Resolution | 12bit |
| Dimensions | 7.2 x 7.2 x 1.45mm |
| Minimum Operating Temperature | -40 °C |
| Height | 1.45mm |
