NVIDIA Jetson Nano Developer Kit (Optional) + Binocular Stereo Camera + TF Card
Jetson Nano Developer Kit Package D
AI-Powered Depth Vision

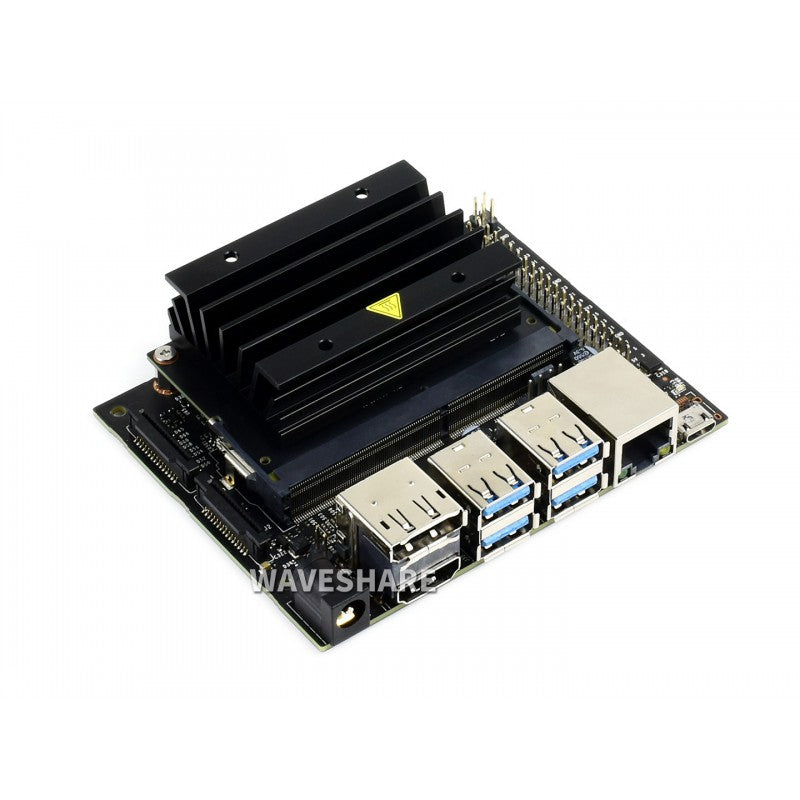

Introducing Jetson Nano
NVIDIA Jetson Nano, Bringing The Power Of Modern AI To Millions Of Devices

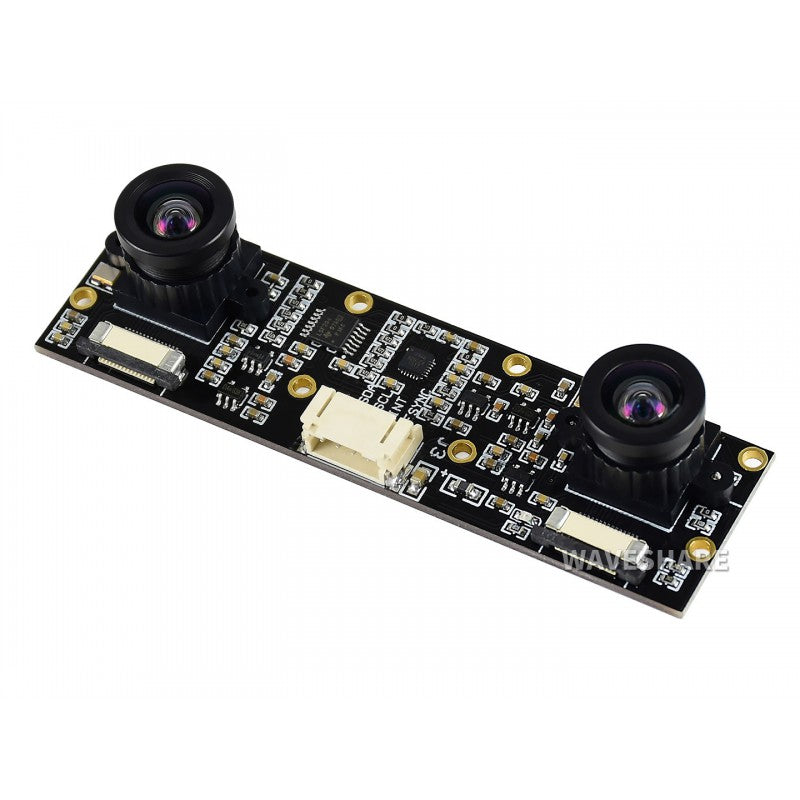

8MP Binocular Camera
Dual Cameras, IMX219 Sensor, 3280×2464 Pixels, Suitable For Depth Vision / Stereo Vision...
- Micro SD card slot: insert a 16GB or larger TF card for main storage and writing system image
- 40-pin expansion header
- Micro USB port: for 5V power input or for USB data transmission
- Gigabit Ethernet port: 10/100/1000Base-T auto-negotiation
- 4x USB 3.0 port
- HDMI output port
- DisplayPort connector
- DC jack: for 5V power input
- 2x MIPI CSI camera connector
| GPU | 128-core Maxwell |
|---|---|
| CPU | Quad-core ARM A57 @ 1.43 GHz |
| MEMORY | 4 GB 64-bit LPDDR4 25.6 GB/s |
| STORAGE | 64GB Class10 Micro SD card |
| VIDEO ENCODER | 4K @ 30 | 4x 1080p @ 30 | 9x 720p @ 30 (H.264/H.265) |
| VIDEO DECODER | 4K @ 60 | 2x 4K @ 30 | 8x 1080p @ 30 | 18x 720p @ 30 (H.264/H.265) |
| CAMERA | 2x MIPI CSI-2 DPHY lanes |
| CONNECTIVITY | Gigabit Ethernet, M.2 Key E expansion connector (Recommendation: AC8265 Dual-mode NIC) |
| DISPLAY | HDMI and DP |
| USB | 4x USB 3.0, USB 2.0 Micro-B |
| EXTENSION INTERFACES | GPIO, I2C, I2S, SPI, UART |
Starter Kit
The very essential parts to get started, guaranteed compatibility and stability.
- Jetson Nano Developer Kit (optional)
- 64GB Class10 high speed TF card
- 5V 4A quality power supply
- Extra SD card reader and jumper
Utilizing the Jetson Nano for facial recognition, object identification, real-time monitoring...
- Jetson Nano Developer Kit (optional)
- 8MP camera module
- 64GB Class10 high speed TF card
- 5V 4A quality power supply
- Extra SD card reader and jumper
It is almost a robot in embryo, you can even "see" via its "eye", time to create your own robot.
- Jetson Nano Developer Kit (optional)
- 7" IPS capacitive touch display
- 8MP camera module
- 64GB Class10 high speed TF card
- 5V 4A quality power supply, card reader...

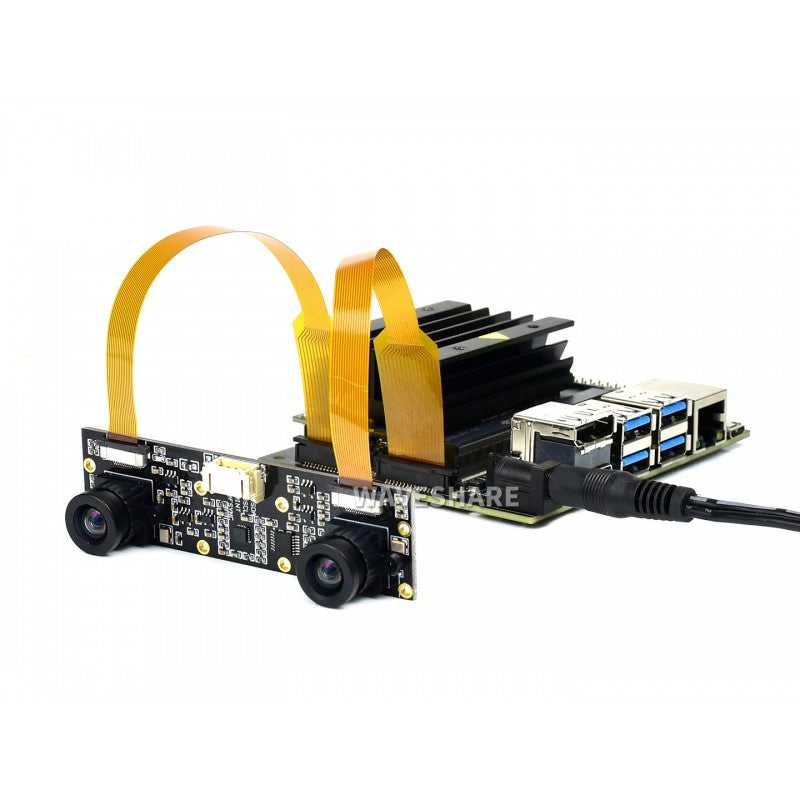

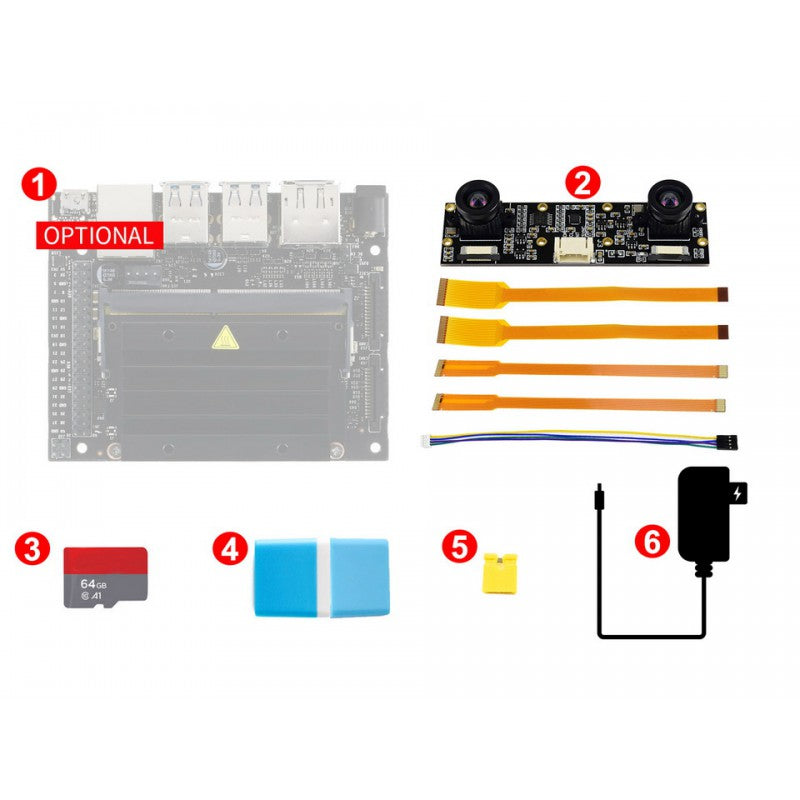

Evaluating depth vision / stereo vision applications powered by Jetson Nano
- Jetson Nano Developer Kit (optional)
- 8MP stereo camera module
- 64GB Class10 high speed TF card
- 5V 4A quality power supply
- Extra SD card reader and jumper
JetRacer
An autonomous AI racing Donkeycar powered by Jetson Nano, features capability like deep learning, self driving, visual road following, etc.
- Jetson Nano Developer Kit (optional)
- JetRacer driver board, alloy chassis
- Camera / Wireless NIC / Teleoperator
- Track Map / TF Card / Power Supply / Cooling Fan...
JetBot
AI robot based on Jetson Nano, features capability like facial recognition, object tracking, auto line following, and collision avoidance...
- Jetson Nano Developer Kit (optional)
- JetBot driver board, alloy chassis
- Camera / Wireless NIC / Teleoperator
- TF Card / Power Supply / Cooling Fan...
