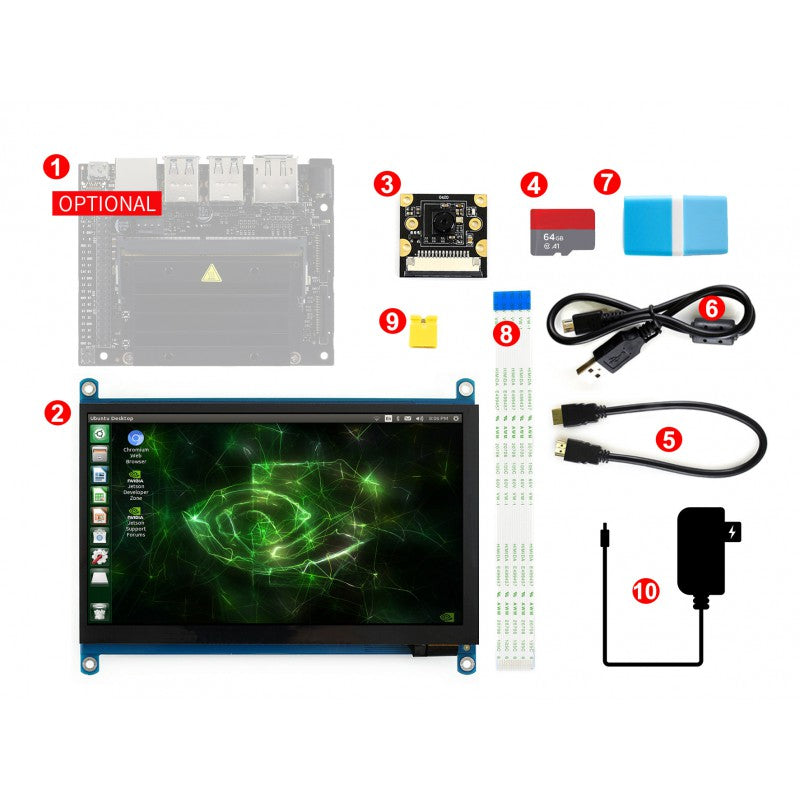

NVIDIA Jetson Nano Developer Kit (Optional) + 7inch Touch Display + Camera + TF Card
Jetson Nano Developer Kit Package C
Almost A Robot In Embryo
Introducing Jetson Nano
NVIDIA Jetson Nano, Bringing The Power Of Modern AI To Millions Of Devices
7" HDMI Touch Display
7inch HDMI LCD (H) Features
- IPS screen, 1024x600 hardware resolution, configurable by software (up to 1920x1080)
- Supports popular mini PCs such as Raspberry Pi, Jetson Nano, BB Black, Banana Pi, as well as general desktop computers
- When works with Raspberry Pi, supports Raspbian/Ubuntu/Kali/Retropie/WIN10 IOT, driver free
- When work as a computer monitor, supports Windows 10/8.1/8/7, five-points touch, and driver free
- Supports popular game consoles like Microsoft XBOX360, Sony PS4, and Nintendo Switch, etc.
- Multi languages OSD menu, for power management, brightness/contrast adjustment, etc.
- 3.5mm audio jack, speaker connector, supports HDMI audio output
- Also supports VGA input (specific cable is required and should be purchased separately)
8MP Camera
IMX219-77 Camera Features
- Supports CM3/3+/4, Jetson Nano, Jetson Xavier NX
- 8 Megapixels
- Sensor: Sony IMX219
- Resolution: 3280 × 2464
- Lens specifications:
- CMOS size: 1/4inch
- Aperture (F): 2.0
- Focal Length: 2.85mm
- Angle of View (diagonal): 79.3 degree
- Distortion: < 1%
- Lens dimensions: 6.5mm × 6.5mm
- 4 screw holes
- Used for attachment
- Provides 3.3V power output
- Dimension: 25mm × 24mm

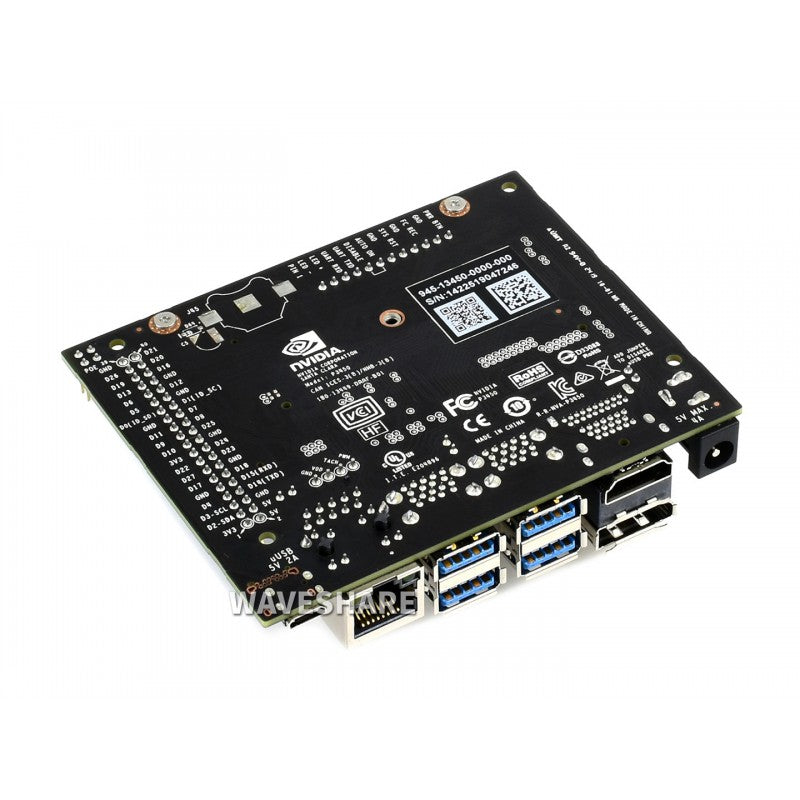

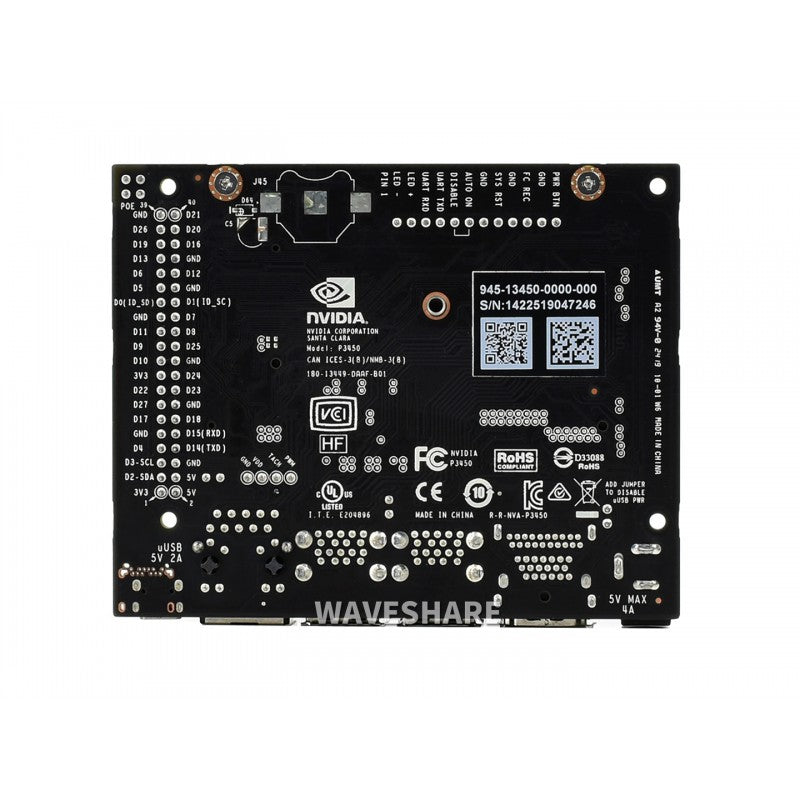

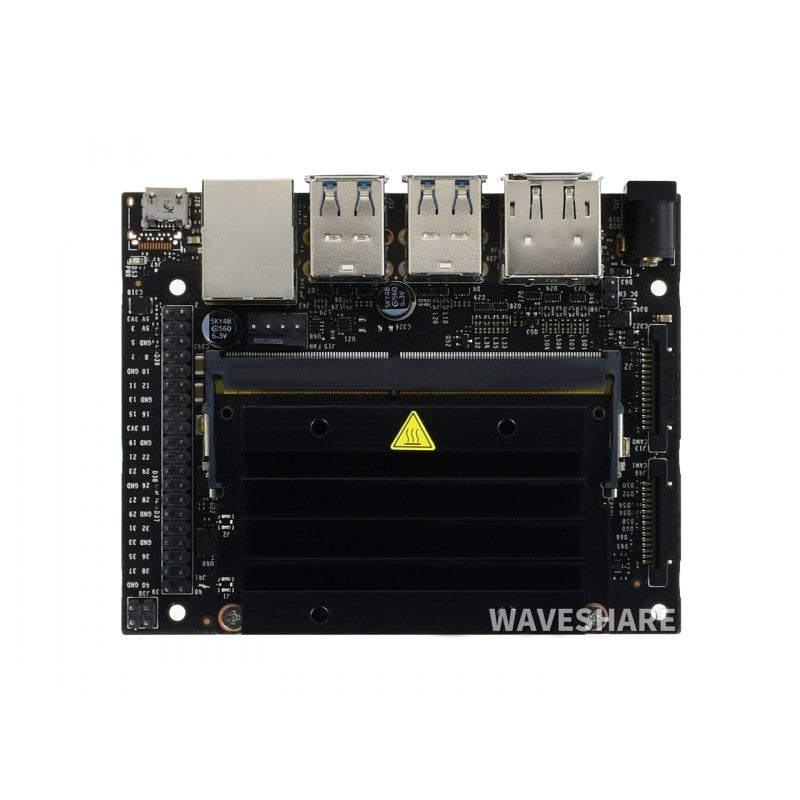

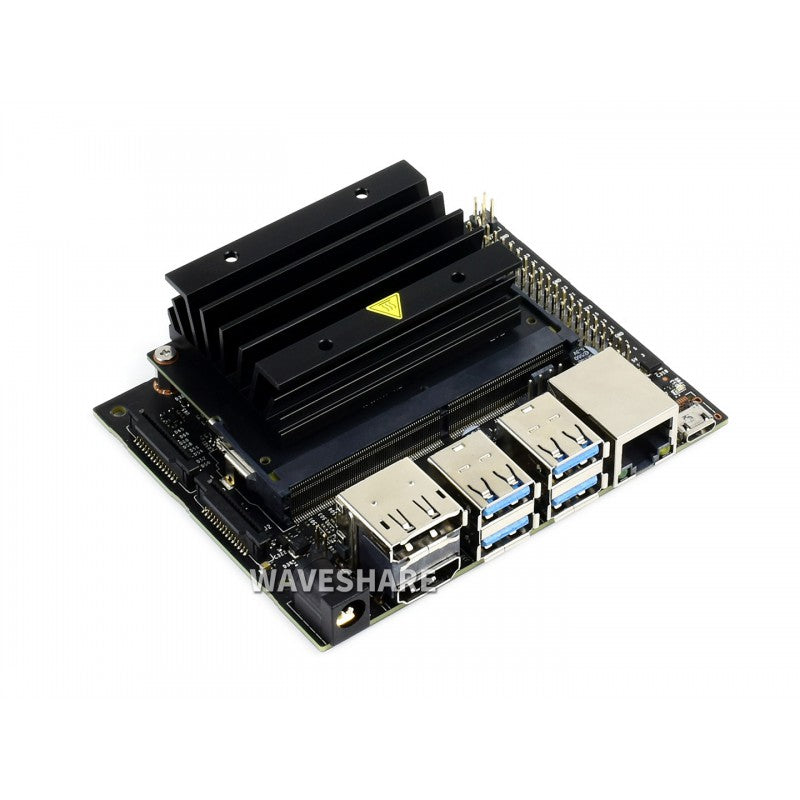

What's On Board
- Micro SD card slot: insert a 16GB or larger TF card for main storage and writing system image
- 40-pin expansion header
- Micro USB port: for 5V power input or for USB data transmission
- Gigabit Ethernet port: 10/100/1000Base-T auto-negotiation
- 4x USB 3.0 port
- HDMI output port
- DisplayPort connector
- DC jack: for 5V power input
- 2x MIPI CSI camera connector
Specifications
GPU | 128-core Maxwell |
---|---|
CPU | Quad-core ARM A57 @ 1.43 GHz |
MEMORY | 4 GB 64-bit LPDDR4 25.6 GB/s |
STORAGE | 64GB Class10 Micro SD card |
VIDEO ENCODER | 4K @ 30 | 4x 1080p @ 30 | 9x 720p @ 30 (H.264/H.265) |
VIDEO DECODER | 4K @ 60 | 2x 4K @ 30 | 8x 1080p @ 30 | 18x 720p @ 30 (H.264/H.265) |
CAMERA | 2x MIPI CSI-2 DPHY lanes |
CONNECTIVITY | Gigabit Ethernet, M.2 Key E expansion connector (Recommendation: AC8265 Dual-mode NIC) |
DISPLAY | HDMI and DP |
USB | 4x USB 3.0, USB 2.0 Micro-B |
EXTENSION INTERFACES | GPIO, I2C, I2S, SPI, UART |
Various Choices Of Development Pack Designed For Jetson Nano Developer Kit
Starter Kit
The very essential parts to get started, guaranteed compatibility and stability.
- Jetson Nano Developer Kit (optional)
- 64GB Class10 high speed TF card
- 5V 4A quality power supply
- Extra SD card reader and jumper
Utilizing the Jetson Nano for facial recognition, object identification, real-time monitoring...
- Jetson Nano Developer Kit (optional)
- 8MP camera module
- 64GB Class10 high speed TF card
- 5V 4A quality power supply
- Extra SD card reader and jumper
It is almost a robot in embryo, you can even "see" via its "eye", time to create your own robot.
- Jetson Nano Developer Kit (optional)
- 7" IPS capacitive touch display
- 8MP camera module
- 64GB Class10 high speed TF card
- 5V 4A quality power supply, card reader...
Evaluating depth vision / stereo vision applications powered by Jetson Nano
- Jetson Nano Developer Kit (optional)
- 8MP stereo camera module
- 64GB Class10 high speed TF card
- 5V 4A quality power supply
- Extra SD card reader and jumper
JetRacer
An autonomous AI racing Donkeycar powered by Jetson Nano, features capability like deep learning, self driving, visual road following, etc.
- Jetson Nano Developer Kit (optional)
- JetRacer driver board, alloy chassis
- Camera / Wireless NIC / Teleoperator
- Track Map / TF Card / Power Supply / Cooling Fan...
JetBot
AI robot based on Jetson Nano, features capability like facial recognition, object tracking, auto line following, and collision avoidance...
- Jetson Nano Developer Kit (optional)
- JetBot driver board, alloy chassis
- Camera / Wireless NIC / Teleoperator
- TF Card / Power Supply / Cooling Fan...
