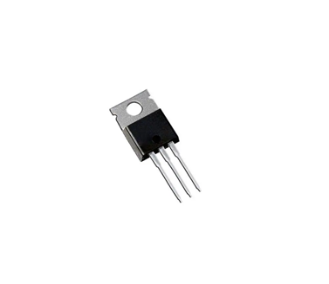

Name: IRLB3034PBF
Brand: LESON SOURCE
SKU: IRLB3034PBF-1
Price: 10.5 USD
Availability: InStock

I agree to my email being stored and used to receive the newsletter.

Manufacturer	Infineon Technologies
Manufacturer Part Number	IRLB3034PBF
Description	MOSFET N-CH 40V 195A TO220AB
Manufacturer Standard Lead Time	IN Stock,Can ship immediately
Detailed Description	N-Channel 40V 195A (Tc) 375W (Tc) Through Hole TO-220AB

Product Attribute	Attribute Value
Manufacturer:	Infineon
Product Category:	MOSFET
RoHS:	Details
Technology:	Si
Mounting Style:	Through Hole
Package / Case:	TO-220-3
Transistor Polarity:	N-Channel
Number of Channels:	1 Channel
Vds - Drain-Source Breakdown Voltage:	40 V
Id - Continuous Drain Current:	343 A
Rds On - Drain-Source Resistance:	1.4 mOhms
Vgs - Gate-Source Voltage:	20 V
Vgs th - Gate-Source Threshold Voltage:	2.5 V
Qg - Gate Charge:	108 nC
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 175 C
Pd - Power Dissipation:	375 W
Channel Mode:	Enhancement
Packaging:	Tube
Configuration:	Single
Height:	15.65 mm
Length:	10 mm
Transistor Type:	1 N-Channel
Width:	4.4 mm
Brand:	Infineon Technologies
Forward Transconductance - Min:	286 S
Fall Time:	355 ns
Product Type:	MOSFET
Rise Time:	827 ns
Factory Pack Quantity:	1000
Subcategory:	MOSFETs
Typical Turn-Off Delay Time:	97 ns
Typical Turn-On Delay Time:	65 ns
Part # Aliases:	IRLB3034PBF SP001578716
Unit Weight:	0.211644 oz

IRLB3034PBF

Part Number:IRLB3034PBF
