X7020: Zynq-7000 SoC XC7Z020 FPGA Development Board

$20.00
$20.00
Продано
×

Thank you. Your data has been successfully saved!


Brand ALINX
Connectivity Technology Ethernet
CPU Manufacturer Xilinx
Wireless Communication Standard 802.11b
Compatible Devices Personal Computer

About this item

  • AX7010 features Xilinx XC7Z010-1CLG400, AX7020 features the larger Xilinx XC7Z020-1CLG400. Built around the Xilinx Zynq-7000 AP SoC, with 650MHz dual-core Cortex-A9 processor and DDR3 memory controller with 8 DMA channel
  • A feature-rich, ready-to-use embedded software and digital circuit development board with a rich set of multimedia and connectivity peripherals to create a formidable single-board computer

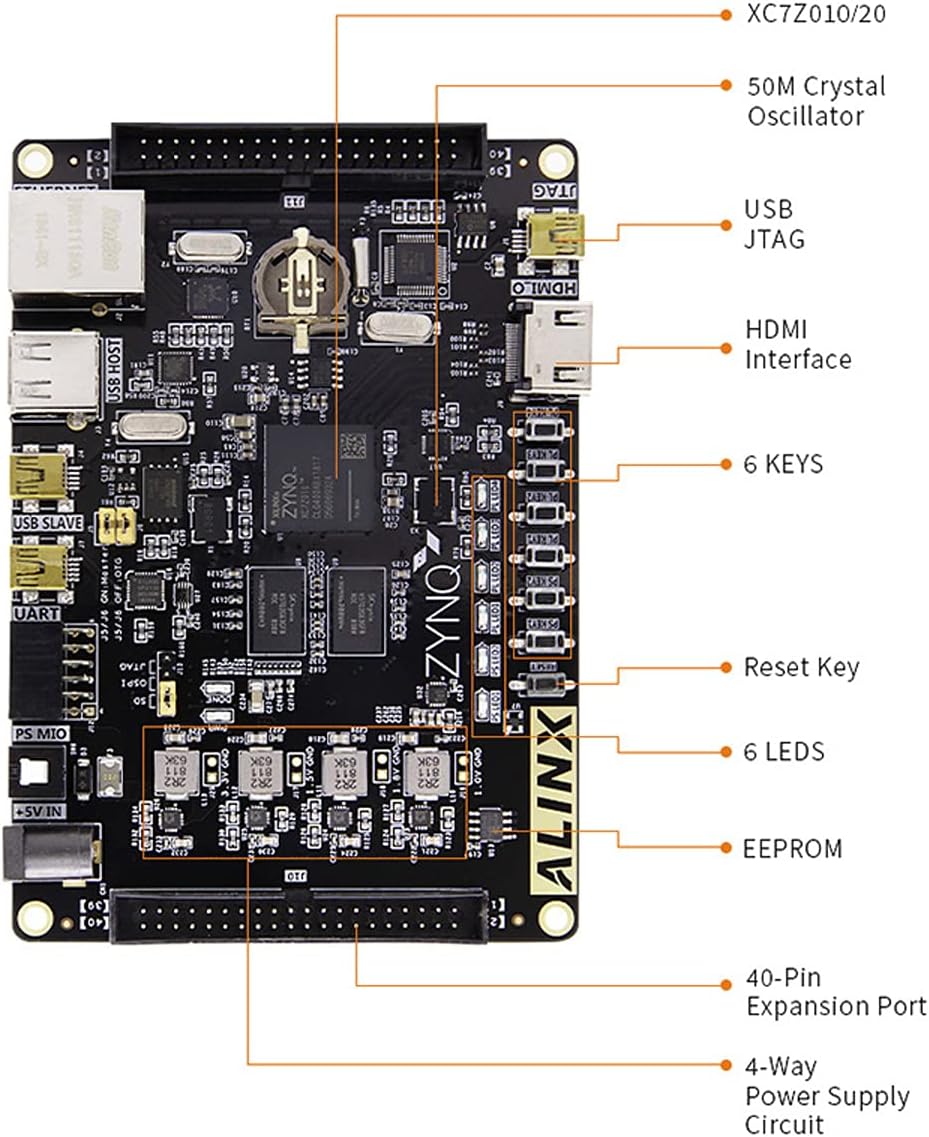

  • Two 40-pin connectors, expansion opportunities with ALINX Module, such as AD/DA data acquisition module, camera and LCD module
  • Designed and manufactured by ALINX, that is XILINX Alliance Member in china. Provide schematic, user manual in PDF, Verilog HDL demos and experiments guideline

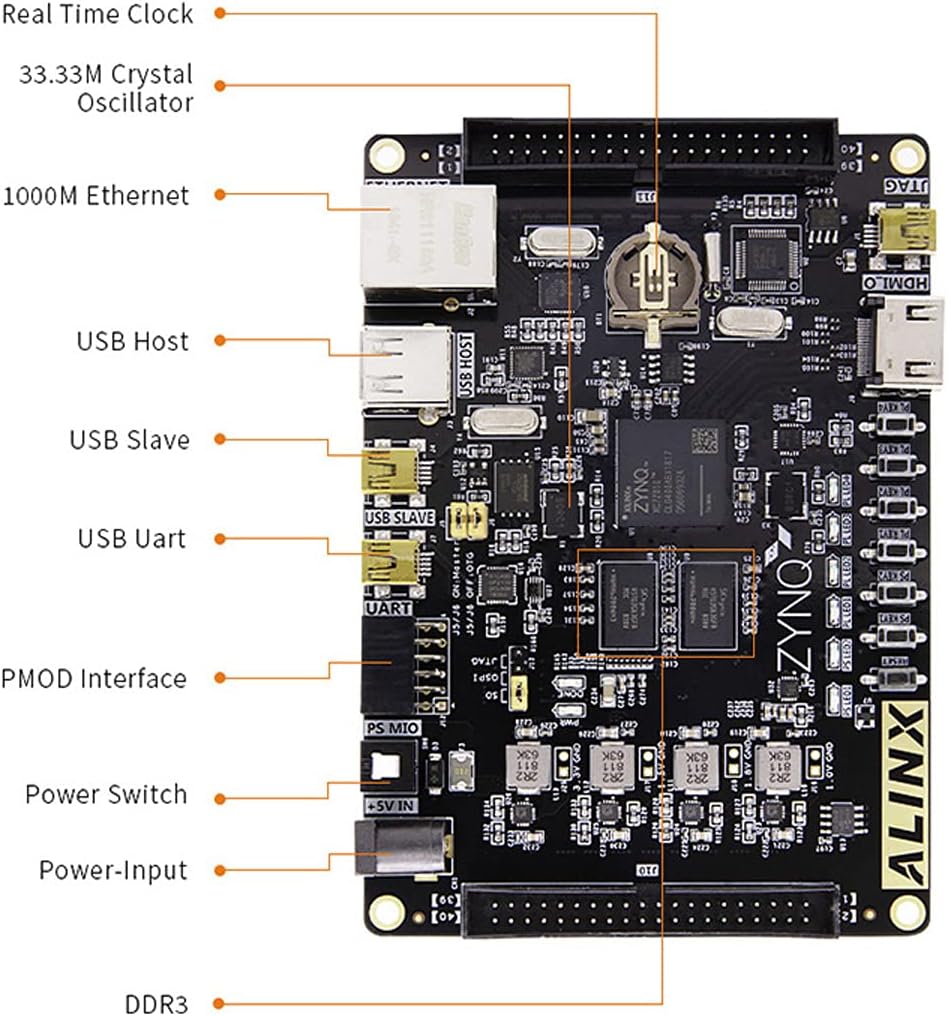

  • ZYNQ entry preferred 10/100/1000 Mbps Ethernet (RGMII)/HDMI Input and Output/ USB 2.0/UART/PMOD connector
Note:
Products with electrical plugs are designed for use in the US. Outlets and voltage differ internationally and this product may require an adapter or converter for use in your destination. Please check compatibility before purchasing.

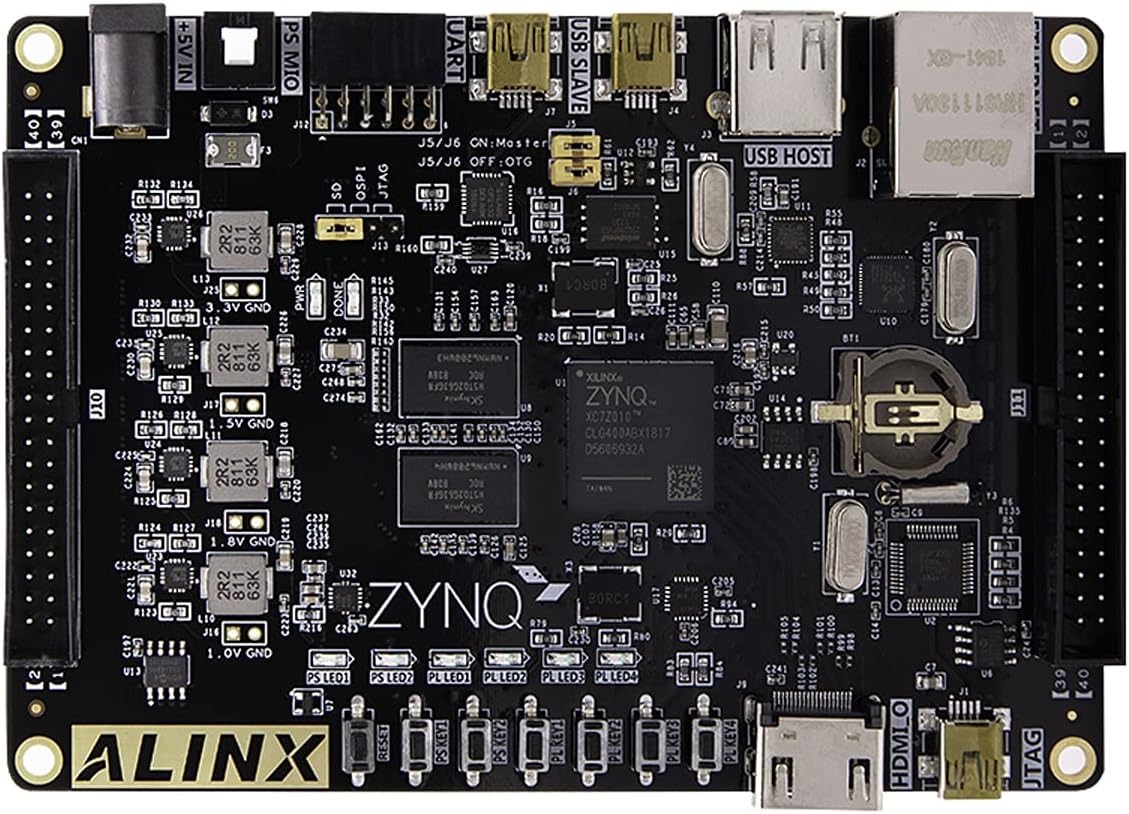

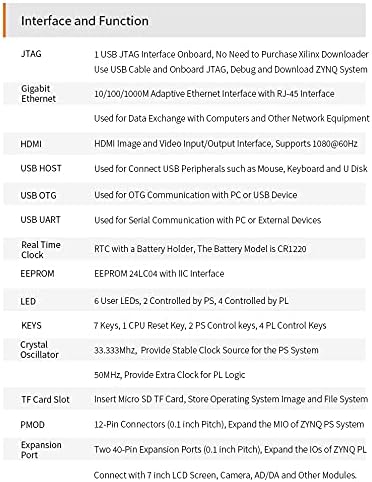

The Zynq-7000 Artix-7 FPGA ARM SoC 7010/7020 development board includes all the basic components of hardware and many peripheral interfaces. Supports embedded processing with Dual ARM Cortex-A9 core processors. Enabling serial connectivity with many peripheral interfaces (Gigabit Ethernet, HDIM Video Output, USB 2.0 Host, USB 2.0 OTG, USB-to-UART). Provide user manual/ Schematic and Verilog HDL Demos for your study.

The Main differences between AX7010 FPGA Board and AX7020 FPGA Board is the FPGA Chip and DDR3 Capacity. The board interfaces are same.

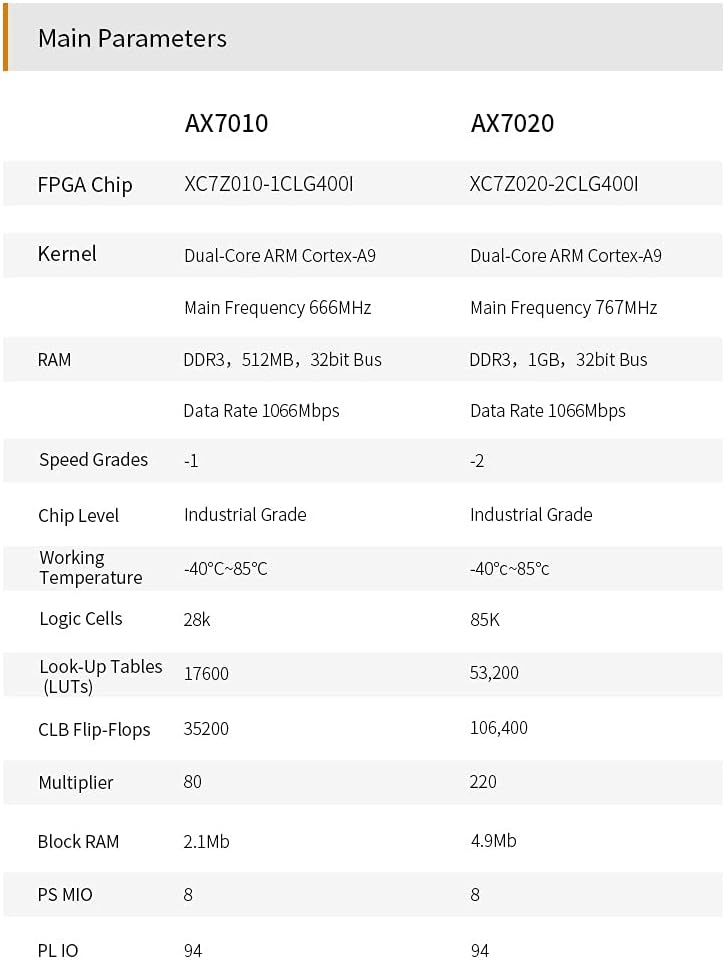

AX7010 Features FPGA: Xilinx Zynq-7000 AXC7Z010-1CLG400C

AX7020 Features FPGA: Xilinx Zynq-7000 AXC7Z020-2CLG400I



  • Processor Core: Dual-Core ARM Cortex-A9, MPCore 666Mhz for AX7010, MPCore 767Mhz for AX7020
  • L1 Cache: 32KB instruction, 32KB Data per processor;
  • L2 Cache: 512KB
  • On-Chip Memory: 256 KB
  • PL Equivalent: Artix-7
  • Logic Cells: 28K for AX7010, 85K for AX7020
  • Look up Tables (LUTs): 17,600 for AX7010, 53,200 for AX7020
  • CLB flip-flops: 35,200 for AX7010, 106,400 for AX7020
  • Total Block RAM(kb): 2.1Mbit for AX7010, 4.9 Mbit for AX7020
  • DSP Slices: 80 for AX7010; 220 for AX7020
  • Analog Mixed Signal (AMS)/XADC: 2 x 12bit, MSPS ADCs with up to 17 Differential Inputs
  • Speed Grade: AX7020 faster than AX7010
  • Temperature Grade: Commercial Grade for AX7010, Industrial Grade for AX7020
  • PS Memory: 4GB DDR3 SDRAM for AX7010, 8GB DDR3 SDRAM for AX7020

Zynq 7000

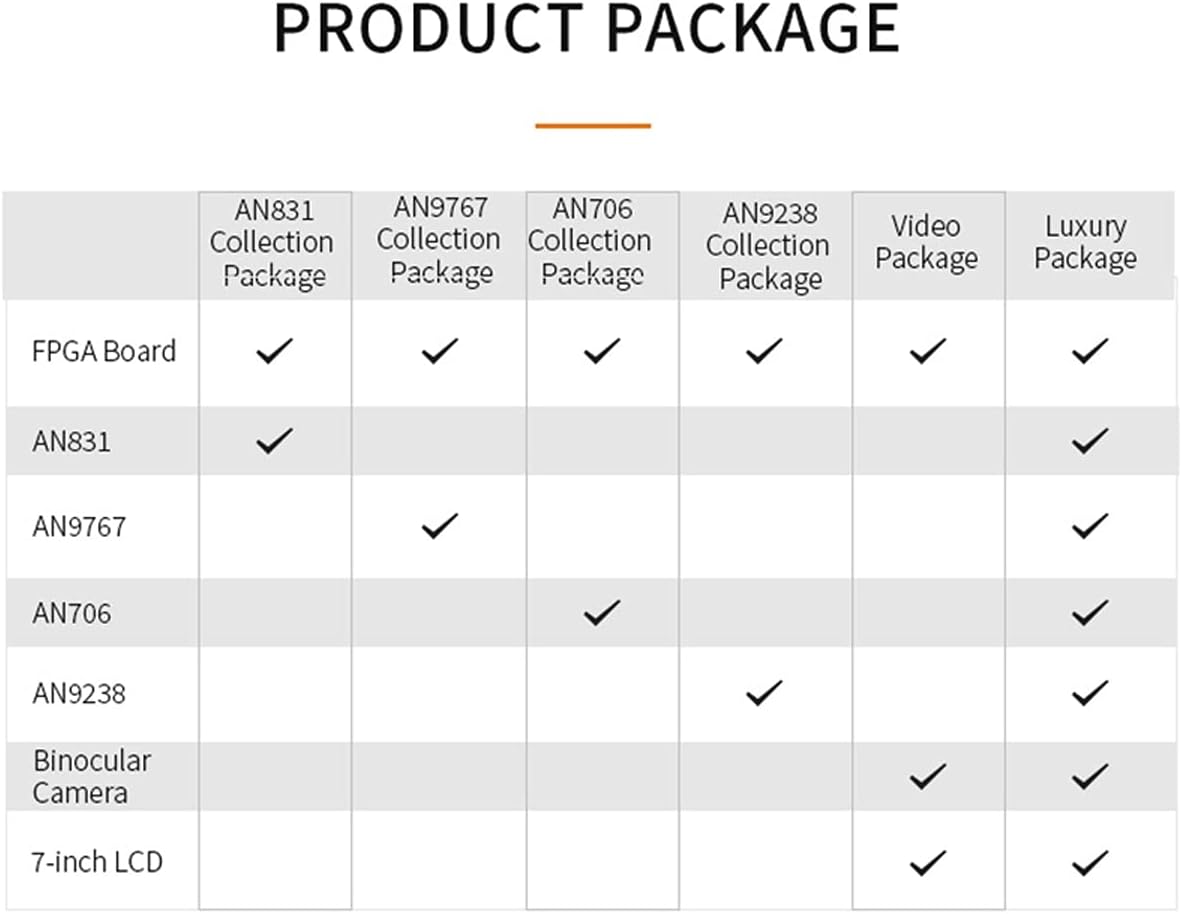

Package
Verilog HDL Demos
×
