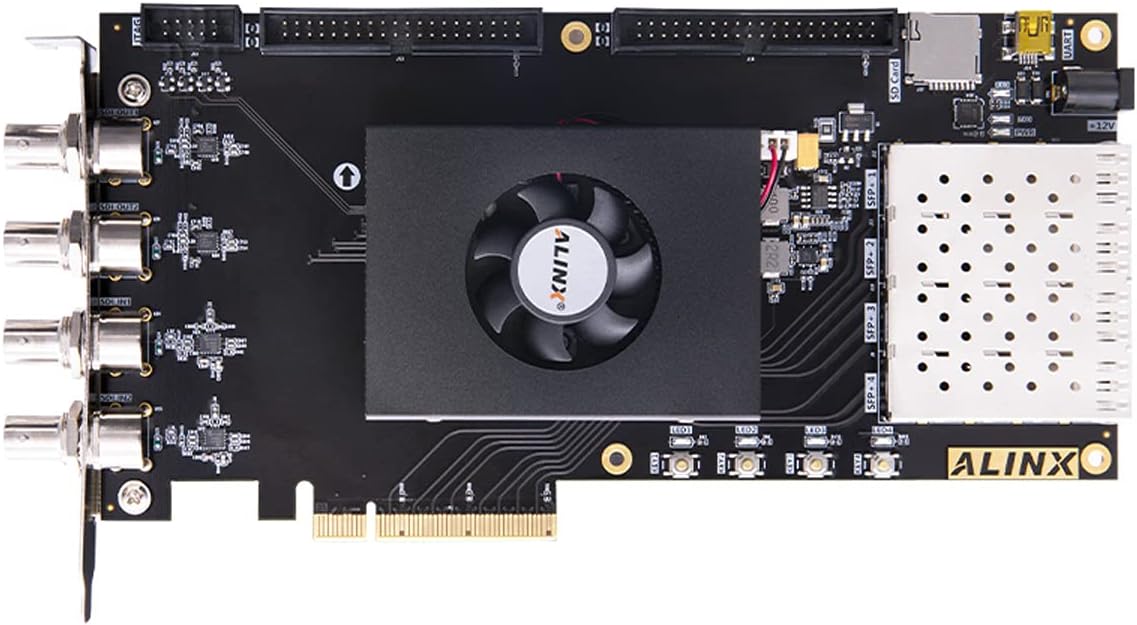

V7K300: XILINX Kintex-7 K7 7325 XC7K325 SDI Video Image Processing SFP PCIE Accelerator Card FPGA Development Board
V7K300: XILINX Kintex-7 K7 7325 XC7K325 SDI Video Image Processing SFP PCIE Accelerator Card FPGA Development Board
Обычная цена
$20.00 USD
Обычная цена
Цена со скидкой
$20.00 USD
Цена за единицу
за
Не удалось загрузить сведения о доступности самовывоза
| Brand | ALINX |
| Compatible Processors | Intel Xeon |
| Memory Clock Speed | 2133 MHz |
| Platform | Linux |
| Memory Storage Capacity | 8 GB |
| Graphics Card Interface | PCI Express |
| Memory Slots Available | 2 |
| S/PDIF Connector Type | Optical |
| System Bus Standard Supported | SATA 3 |
About this item

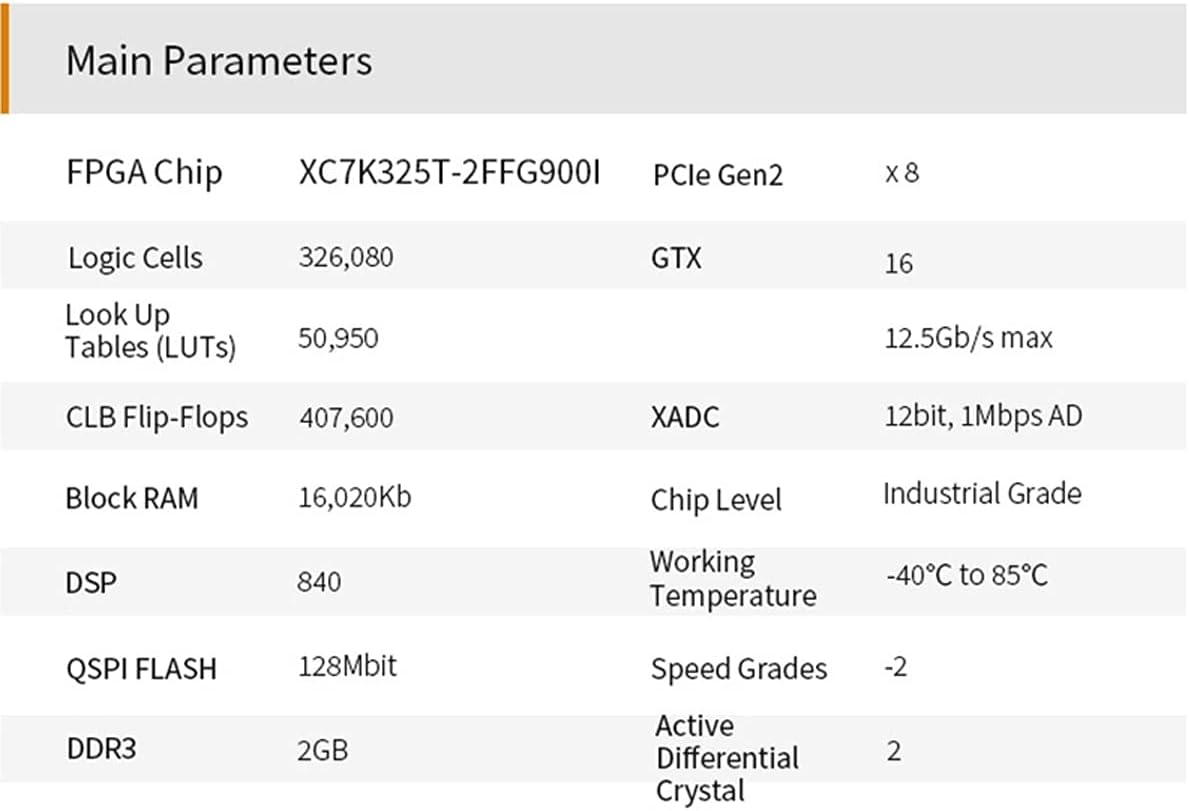

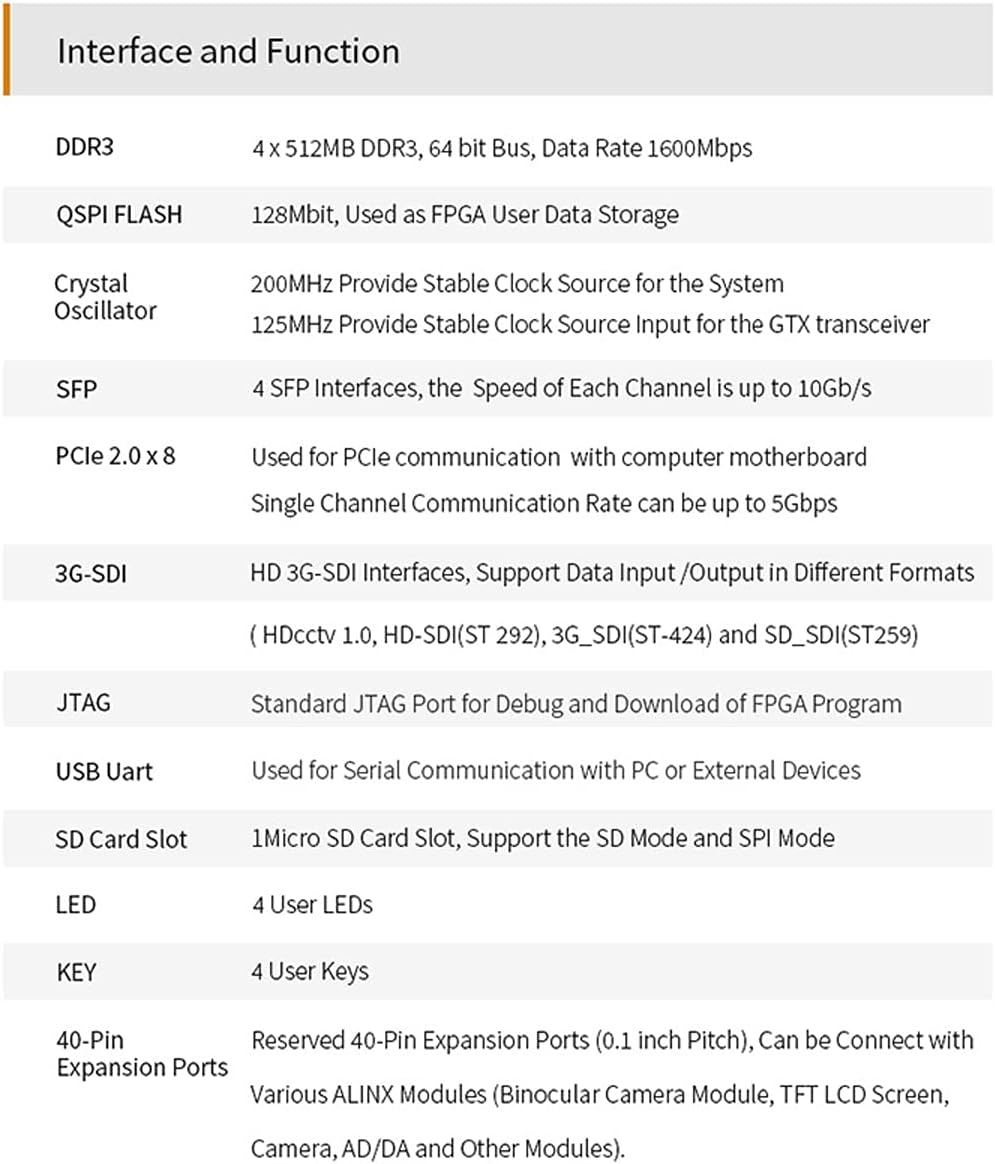

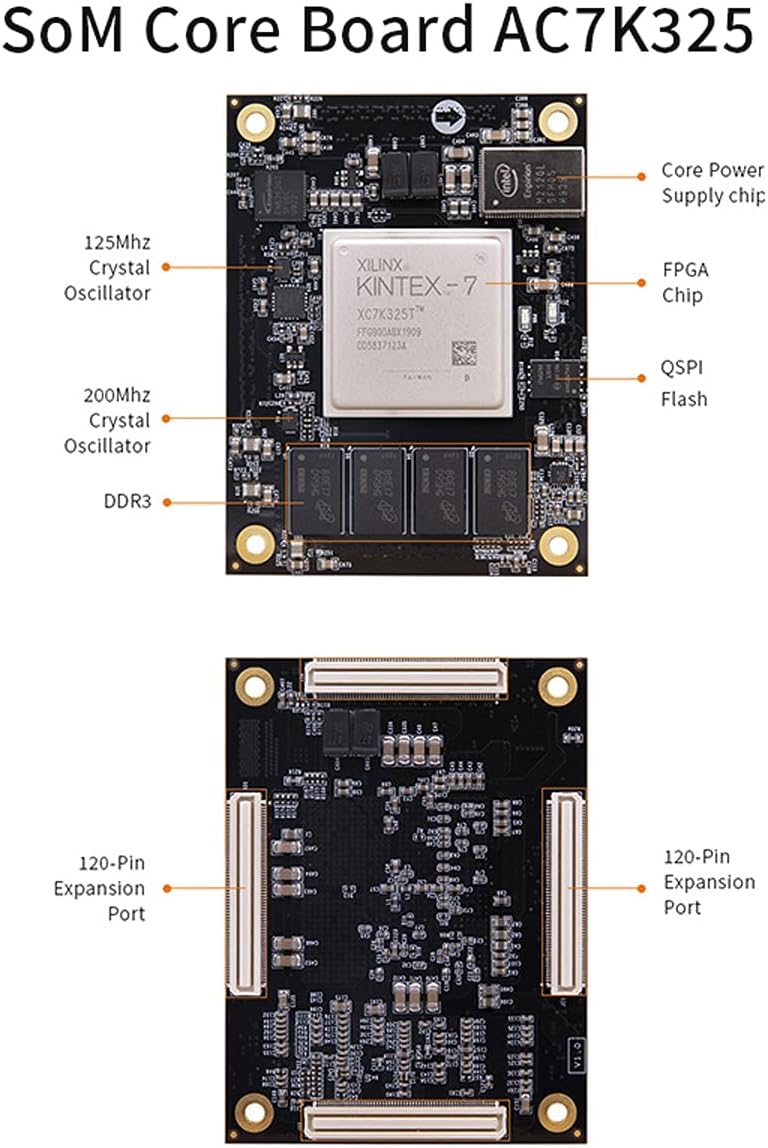

- FPGA: Xilinx Kintex-7 XC7K325T-2FFG900I.
- 2GB DDR3, 64bit, 1600Mbps, 16MB QSPI FLASH.

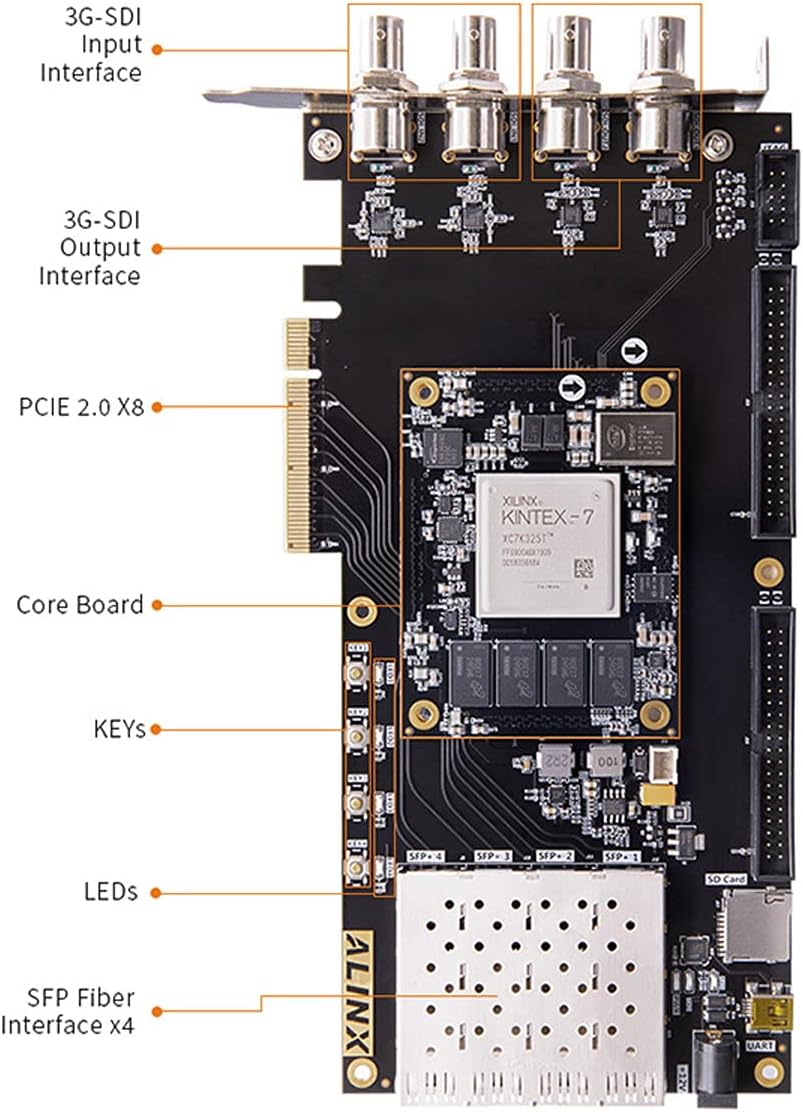

- 4 SFP+ Fiber Interfaces, Each Up to 10Gbps.
- PCIe x8, Supports PCI Express 2.0 standard, Single Channel up to 5Gbps.
- 2 3G-SDI Input Interface and 2 3G-SDI Output Interface, Supports HDcctv 1.0, HD-SDI (ST 292), 3G_ SDI (ST-424) and SD_ SDI.

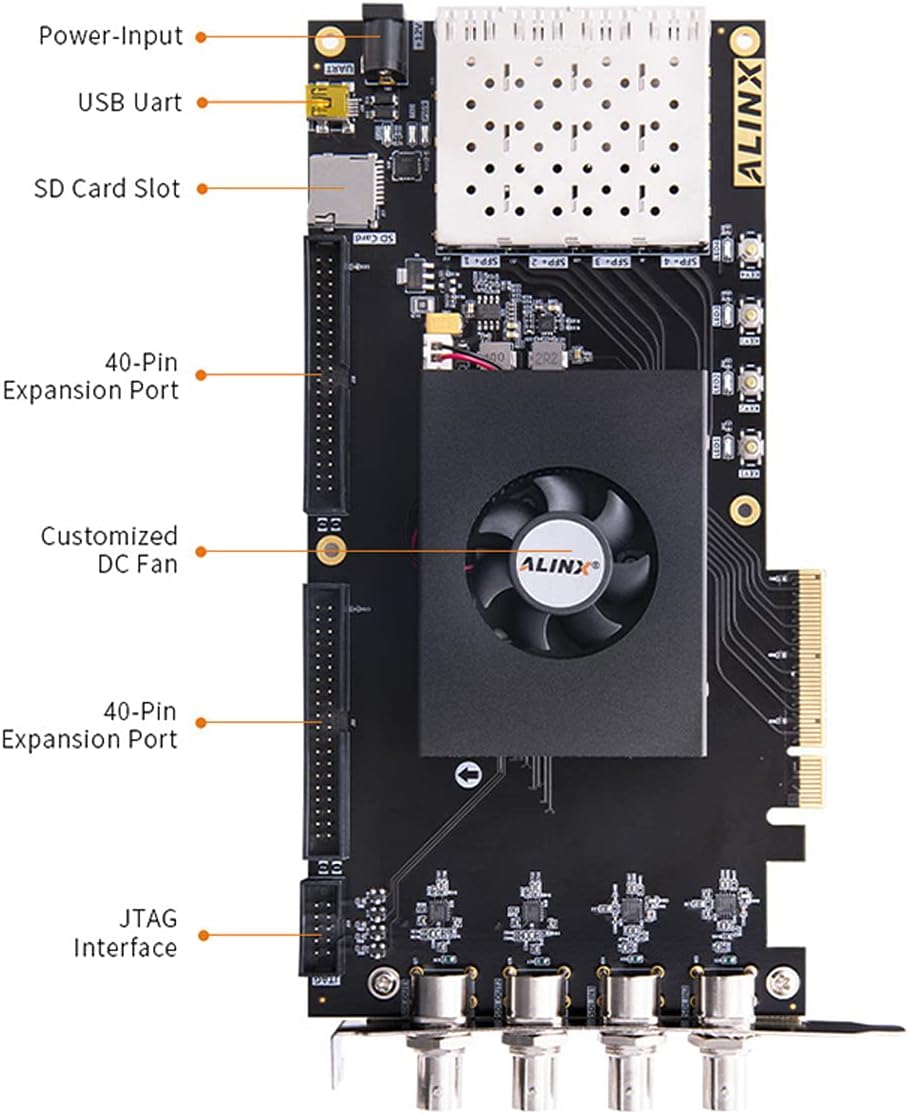

- 2x 40-pin Expansion Port for ALINX Brand Modules.
- Integrated USB to UART, JTAG, TF Card Slot and Other Common Interfaces.
- Customized Cooling Fan, Maximum Cooling Power Consumption 30W .

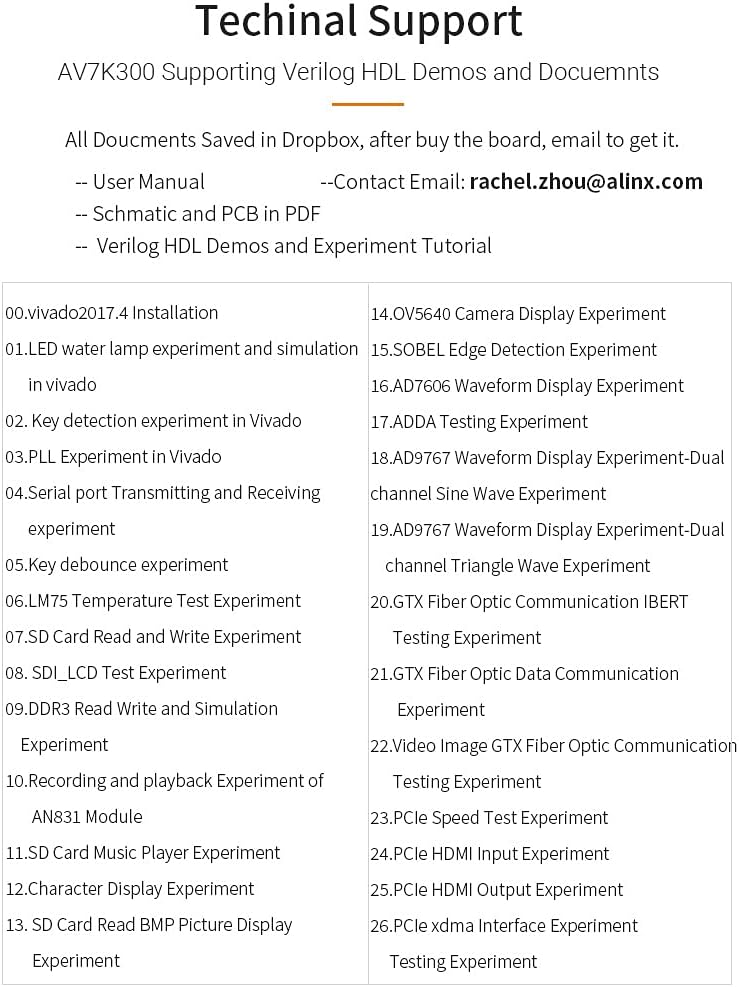

- Provide Documents in PDF (Schematic, PCB, Chip Datasheet, User Manual).
- Provide Demos, Supporting Tutorials, Easier to Get Started With.
