Mfr PN: ADS1248IPWR
|
TYPE |
DESCRIPTION |
|
Category |
|
|
Mfr |
Texas Instruments |
|
Series |
- |
|
Package |
Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
|
Product Status |
Active |
|
Number of Bits |
24 |
|
Sampling Rate (Per Second) |
2k |
|
Number of Inputs |
4, 7 |
|
Input Type |
Differential, Single Ended |
|
Data Interface |
SPI |
|
Configuration |
MUX-PGA-ADC |
|
Ratio - S/H:ADC |
- |
|
Number of A/D Converters |
1 |
|
Architecture |
Sigma-Delta |
|
Reference Type |
External, Internal |
|
Voltage - Supply, Analog |
2.7V ~ 5.25V |
|
Voltage - Supply, Digital |
2.7V ~ 5.25V |
|
Features |
PGA, Temperature Sensor |
|
Operating Temperature |
-40°C ~ 105°C |
|

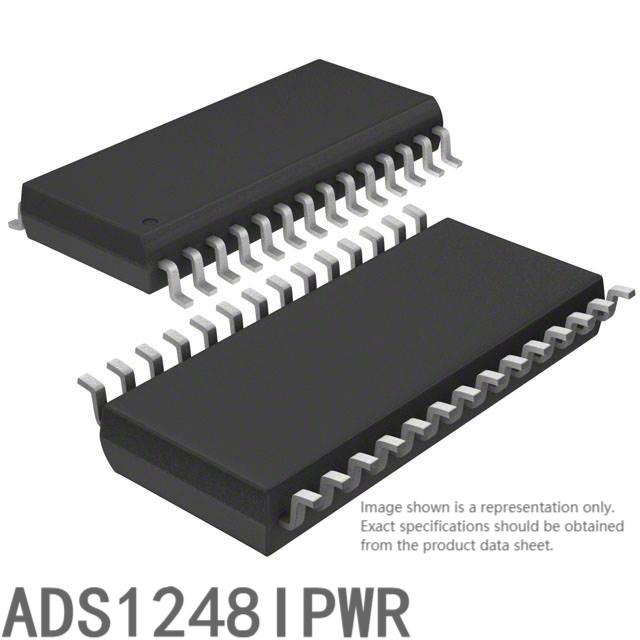

Package / Case |
28-TSSOP (0.173", 4.40mm Width) |
|
Supplier Device Package |
28-TSSOP |
|
Mounting Type |
Surface Mount |
|
Base Product Number |
