Description:

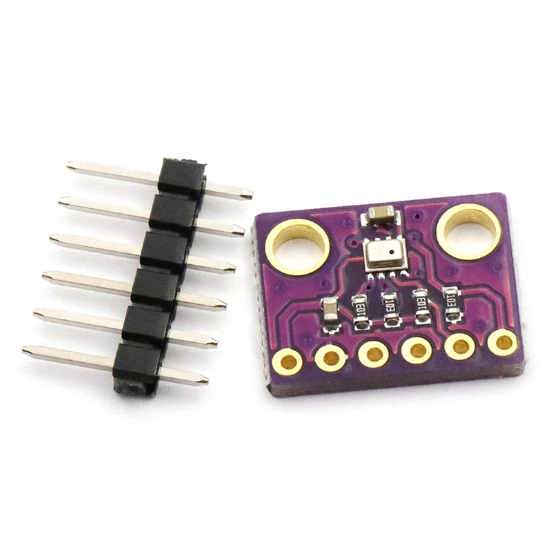

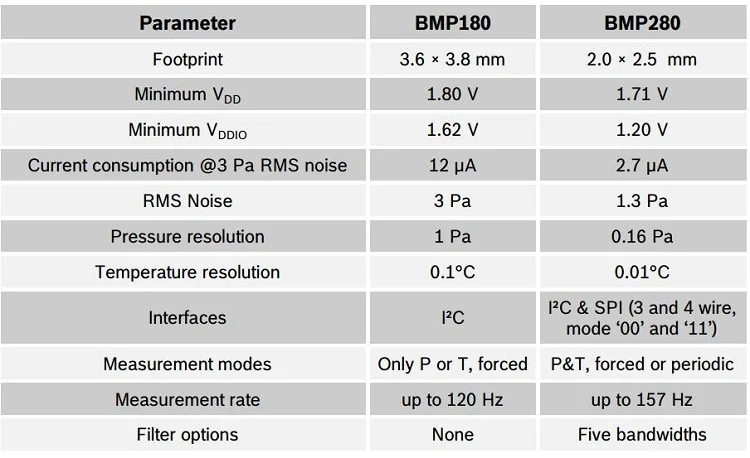

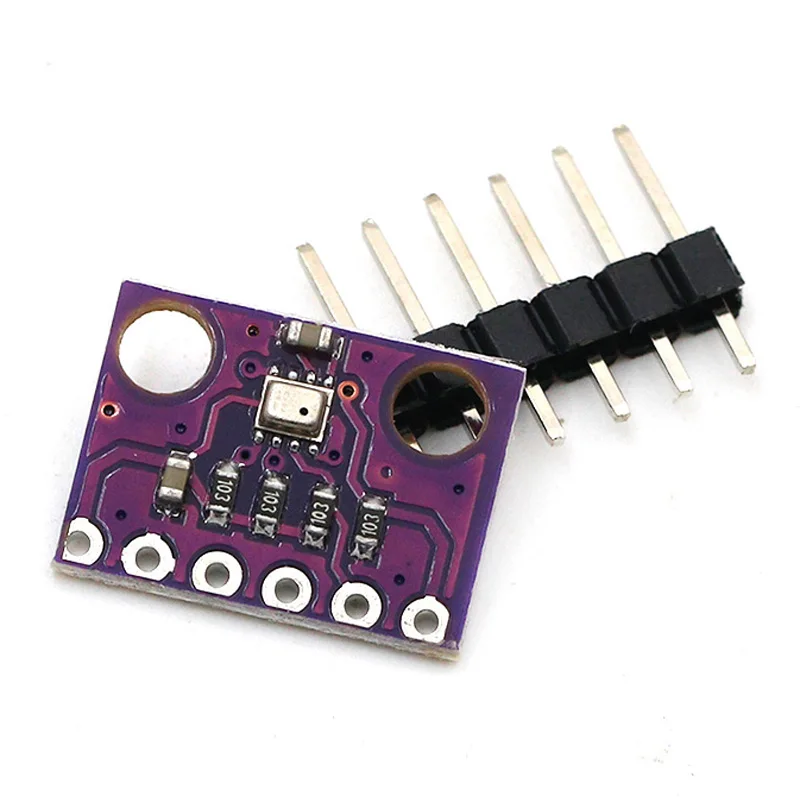

has stepped up their game with their new BMP280 sensor, an environmental sensor with temperature, barometric pressure that is the next generation upgrade to the BMP085/BMP180/BMP183. This sensor is great for all sorts of weather sensing and can even be used in both I2C and SPI!

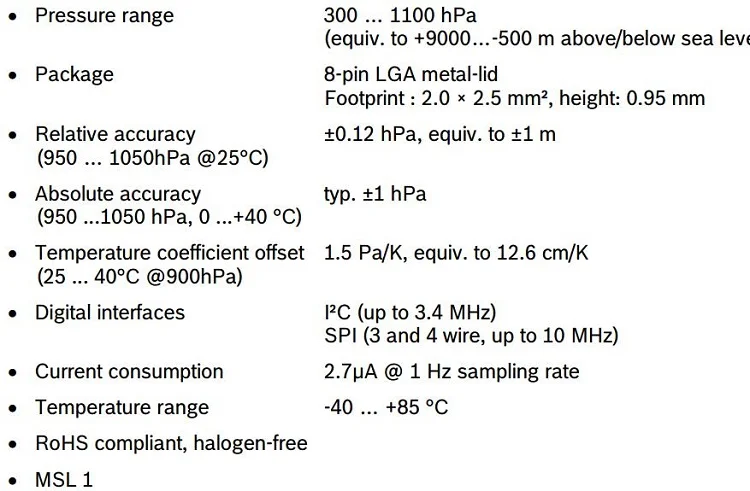

* This precision sensor is the best low-cost, precision sensing solution for measuring barometric pressure with ±1 hPa absolute accuracy, and temperature with ±1.0°C accuracy. Because pressure changes with altitude, and the pressure measurements are so good, you can also use it as an altimeter with ±1 meter accuracy.
Typical application:
-
Enhancement of GPS navigation
-
e.g.time-to-first-fix improvement,dead-reckoning,slope detection
-
Indoor navigation(floor detection,elevator detection)
-
Outdoor navigation,leisure and sports applications
-
Weather forecast
-
Health care application(e.g. sirometry)
-
Vertical velocity indication(e.g. risk/sink speed)
-
Target devices
-
Handsets such as mobile phones ,table PCs,GPS devices
-
Navigation systems
-
Portable health caredevices
-
Home weather stations
-
Flying toys
-
Watches
-
PCB size:(L*W)1.52* 1.20cm/0.60"*0.47"
