NVIDIA Jetson Nano Developer Kit (Optional) + 7inch Touch Display + Camera + TF Card
NVIDIA Jetson Nano Developer Kit (Optional) + 7inch Touch Display + Camera + TF Card

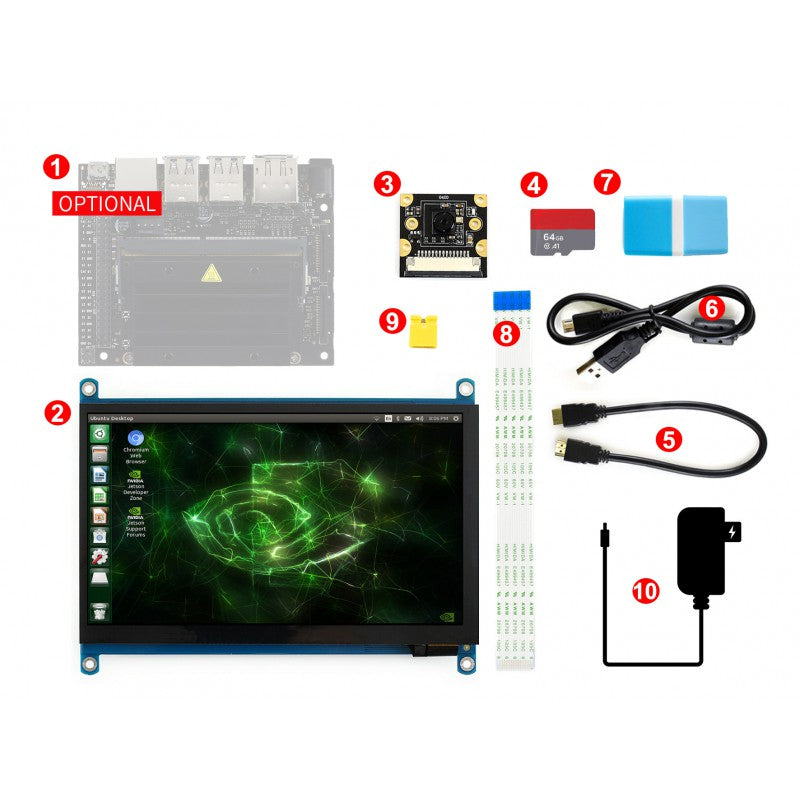

Jetson Nano Developer Kit Package C
Almost A Robot In Embryo
This is a development pack (Type C) designed for NVIDIA Jetson Nano, it includes: Jetson Nano Developer Kit official content (optional), 7inch IPS capacitive touch display, IMX219-77 camera board, 64GB class 10 TF card, and the power adapter. This pack is almost a robot in embryo, you can even "see" via its "eye", now it's your show time to bring the superior AI robot to life.

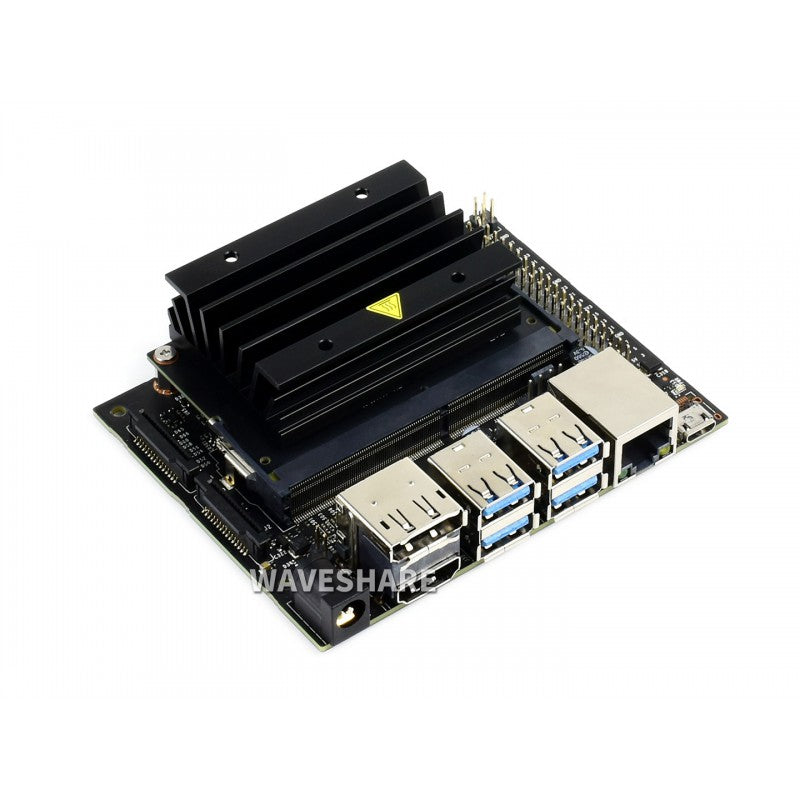

Introducing Jetson Nano
NVIDIA Jetson Nano, Bringing The Power Of Modern AI To Millions Of Devices
7" HDMI Touch Display
7inch HDMI LCD (H) Features
- IPS screen, 1024x600 hardware resolution, configurable by software (up to 1920x1080)
- Supports popular mini PCs such as Raspberry Pi, Jetson Nano, BB Black, Banana Pi, as well as general desktop computers
- When works with Raspberry Pi, supports Raspbian/Ubuntu/Kali/Retropie/WIN10 IOT, driver free
- When work as a computer monitor, supports Windows 10/8.1/8/7, five-points touch, and driver free
- Supports popular game consoles like Microsoft XBOX360, Sony PS4, and Nintendo Switch, etc.
- Multi languages OSD menu, for power management, brightness/contrast adjustment, etc.
- 3.5mm audio jack, speaker connector, supports HDMI audio output
- Also supports VGA input (specific cable is required and should be purchased separately)
8MP Camera
IMX219-77 Camera Features
- Supports CM3/3+/4, Jetson Nano, Jetson Xavier NX
- 8 Megapixels
- Sensor: Sony IMX219
- Resolution: 3280 × 2464
- Lens specifications:
- CMOS size: 1/4inch
- Aperture (F): 2.0
- Focal Length: 2.85mm
- Angle of View (diagonal): 79.3 degree
- Distortion: < 1%
- Lens dimensions: 6.5mm × 6.5mm
- 4 screw holes
- Used for attachment
- Provides 3.3V power output
- Dimension: 25mm × 24mm

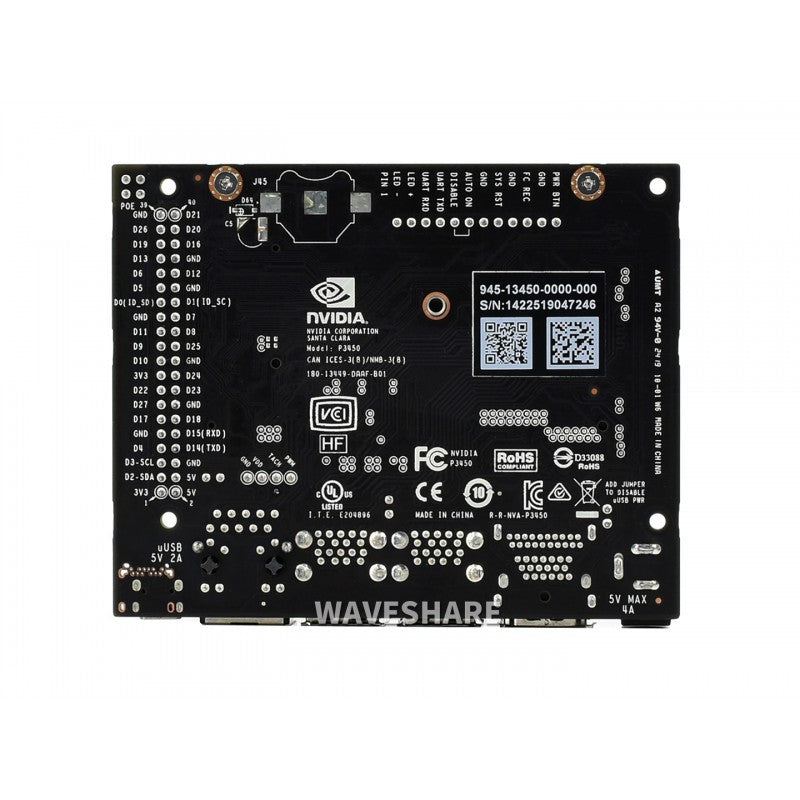

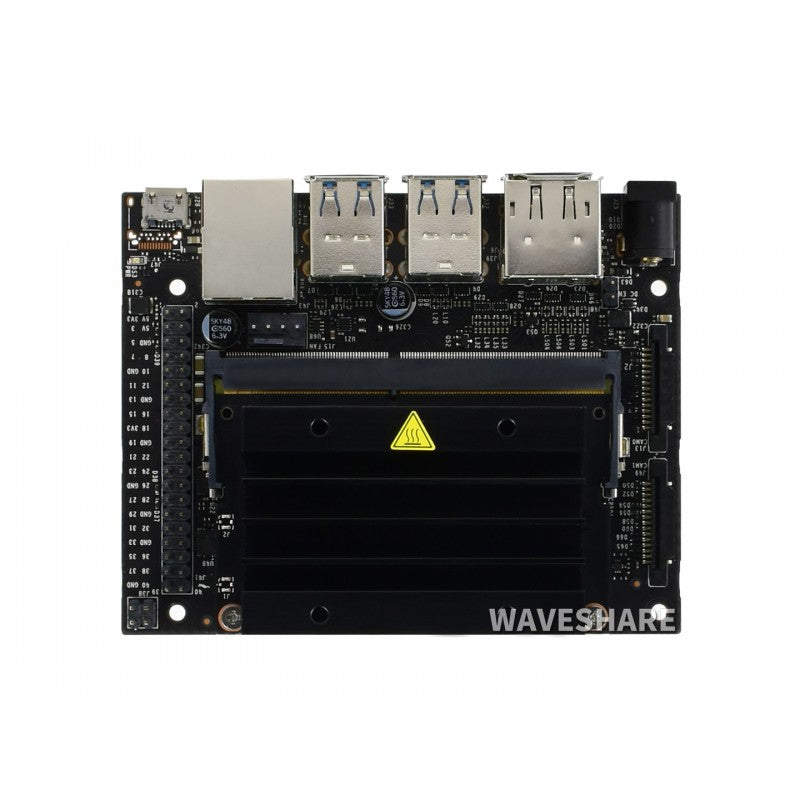

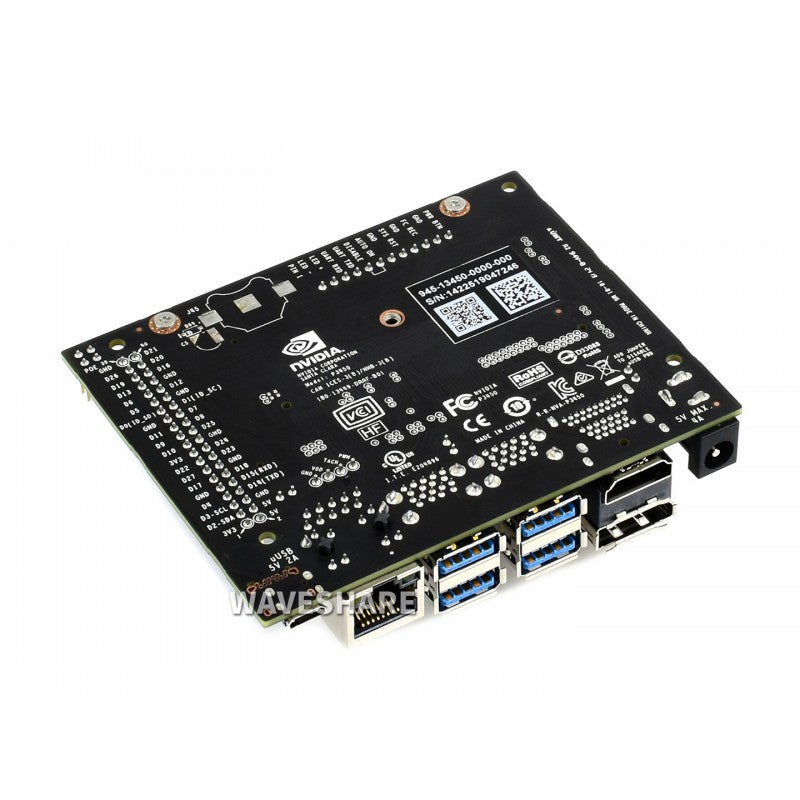

What's On Board
- Micro SD card slot: insert a 16GB or larger TF card for main storage and writing system image
- 40-pin expansion header
- Micro USB port: for 5V power input or for USB data transmission
- Gigabit Ethernet port: 10/100/1000Base-T auto-negotiation
- 4x USB 3.0 port
- HDMI output port
- DisplayPort connector
- DC jack: for 5V power input
- 2x MIPI CSI camera connector
Specifications
| GPU | 128-core Maxwell |
|---|---|
| CPU | Quad-core ARM A57 @ 1.43 GHz |
| MEMORY | 4 GB 64-bit LPDDR4 25.6 GB/s |
| STORAGE | 64GB Class10 Micro SD card |
| VIDEO ENCODER | 4K @ 30 | 4x 1080p @ 30 | 9x 720p @ 30 (H.264/H.265) |
| VIDEO DECODER | 4K @ 60 | 2x 4K @ 30 | 8x 1080p @ 30 | 18x 720p @ 30 (H.264/H.265) |
| CAMERA | 2x MIPI CSI-2 DPHY lanes |
| CONNECTIVITY | Gigabit Ethernet, M.2 Key E expansion connector (Recommendation: AC8265 Dual-mode NIC) |
| DISPLAY | HDMI and DP |
| USB | 4x USB 3.0, USB 2.0 Micro-B |
| EXTENSION INTERFACES | GPIO, I2C, I2S, SPI, UART |
Kits Selection Guide
Various Choices Of Development Pack Designed For Jetson Nano Developer Kit
Starter Kit
The very essential parts to get started, guaranteed compatibility and stability.
- Jetson Nano Developer Kit (optional)
- 64GB Class10 high speed TF card
- 5V 4A quality power supply
- Extra SD card reader and jumper
Camera Kit
Utilizing the Jetson Nano for facial recognition, object identification, real-time monitoring...
- Jetson Nano Developer Kit (optional)
- 8MP camera module
- 64GB Class10 high speed TF card
- 5V 4A quality power supply
- Extra SD card reader and jumper
Display Kit
It is almost a robot in embryo, you can even "see" via its "eye", time to create your own robot.
- Jetson Nano Developer Kit (optional)
- 7" IPS capacitive touch display
- 8MP camera module
- 64GB Class10 high speed TF card
- 5V 4A quality power supply, card reader...
Binocular Kit
Evaluating depth vision / stereo vision applications powered by Jetson Nano
- Jetson Nano Developer Kit (optional)
- 8MP stereo camera module
- 64GB Class10 high speed TF card
- 5V 4A quality power supply
- Extra SD card reader and jumper
Robot Kit
JetRacer
JetRacer
An autonomous AI racing Donkeycar powered by Jetson Nano, features capability like deep learning, self driving, visual road following, etc.
- Jetson Nano Developer Kit (optional)
- JetRacer driver board, alloy chassis
- Camera / Wireless NIC / Teleoperator
- Track Map / TF Card / Power Supply / Cooling Fan...
Robot Kit
JetBot
JetBot
AI robot based on Jetson Nano, features capability like facial recognition, object tracking, auto line following, and collision avoidance...
- Jetson Nano Developer Kit (optional)
- JetBot driver board, alloy chassis
- Camera / Wireless NIC / Teleoperator
- TF Card / Power Supply / Cooling Fan...
