Jetson Nano Development / Expansion Kit, Alternative Solution Of B01 Kit, Optional Jetson Nano Core Module
Alternative solution of B01 kit
Based on AI computers Jetson Nano, providing almost the same peripheral interfaces, size and thickness as the Jetson Nano Developer Kit (B01), more convenient for upgrading the core module. By utilizing the power of core module, it is qualified for fields like image classification, object detection, segmentation, speech processing etc. and can be used in sorts of AI projects.
Compatible With Expansion Modules And Cases Of The Jetson Nano Developer Kit (B01)
Jetson Nano Developer Kit (B01)
JETSON-NANO-DEV-KIT
Comparing The Storage Solution
Default Storage
Jetson Nano Developer Kit (B01)
The Nano module included in the B01 kit has no storage onboard, external TF card is required to be used as the system startup disk
JETSON-NANO-DEV-KIT
Includes a Nano module with onboard 16GB eMMC, more stable reading/writing, no extra TF card required for startup disk, providing adequate space for installing system image and development/study requirement in most cases
External Storage Option
Jetson Nano Developer Kit (B01)
The B01 kit requires an external TF card to be used as the system startup disk
JETSON-NANO-DEV-KIT
Comes with a 64GB TF card, no need to purchase separately, competent for complicate development projects
External TF Card Slot
Jetson Nano Developer Kit (B01)
There is no external TF card slot on the expansion board, it needs to be equipped with a Nano module with a TF card interface
JETSON-NANO-DEV-KIT
Support TF card. To use this function, you need to modify the device tree file, which is difficult for users who are just getting started. Can be used as memory expansion or startup disk
| Jetson Nano Developer Kit (B01) | JETSON-NANO-DEV-KIT | |
| GPU | 128-core Maxwell | |
| CPU | Quad-core ARM A57 @ 1.43 GHz | |
| MEMORY | 4 GB 64-bit LPDDR4 25.6 GB/s | |
| STORAGE | TF card (NOT included) |
16GB eMMC + 64GB TF card |
| VIDEO ENCODER | 250 MP/s 1x 4K @ 30 [HEVC] 2x 1080p @ 60 [HEVC] 4x 1080p @ 30 [HEVC] |
|
| VIDEO DECODER | 500 MP/s 1x 4K @ 60 [HEVC] 2x 4K @ 30 [HEVC] 4x 1080p @ 60 [HEVC] 8x 1080p @ 30 [HEVC] |
|
| CAMERA | 2x MIPI CSI-2 DPHY lanes | |
| CONNECTIVITY | Gigabit Ethernet, M.2 Key E expansion connector | |
| DISPLAY | HDMI and DP | |
| USB | 4x USB 3.0, USB 2.0 Micro-B | |
| EXTENSION INTERFACES | GPIO, I2C, I2S, SPI, UART | |
| DIMENSIONS | 100 × 80 × 29mm | |
| OTHER | 260-pin connector | |
Supports 2-Lanes CSI Camera, Suitable For Binocular Vision Applications Such As Parallax Algorithm Ranging, Facial Recognition, Organism Detection, VR Video Recording...
Supports DisplayPort And HDMI High Definition Ports
USB3.0 High Speed Data Transmission, Allows More USB Peripherals
Color-Coded Header Pins With Clear Labels, Handy For Use
- Core module socket
- TF card slot
- M.2 Key E connector
- 1.25mm Fan header
- PoE pins: PoE module is not included
- 40PIN GPIO header
- 2.54mm Fan header
- Micro USB port: for 5V power input or for USB data transmission
- Gigabit Ethernet port: 10/100/1000Base-T auto-negotiation, supports PoE if external PoE module is connected
- 4x USB 3.0 port
- HDMI output port
- DisplayPort connector
- DC jack: for 5V power input
- 2x MIPI CSI camera connector
- Multi-function 12PIN header
- PWR button: Power ON/OFF control (same function as the PWR BTN pin)
Outline Dimensions
JETSON-IO-BASE-A
The carrier board ONLY, compatible with Jetson Nano
JETSON-NANO-DEV-KIT
The carrier board, along with Jetson Nano module, 64GB TF card, card reader and official heatsink
| KIT | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|
| JETSON-NANO-DEV-KIT | √ | √ | √ | √ | √ | √ | √ |
| Necessary accessories (USB cable, cooling fan, ~1.5m Ethernet cable, 5V 4A power supply) |
√ | √ | √ | √ | √ | √ | √ |
| AC8265 dual-mode NIC | √ | √ | |||||
| IMX219-77 Camera | √ | √ | |||||
| 7inch HDMI LCD (H) | √ | ||||||
| IMX219-83 Stereo Camera | √ | √ | |||||
| Jetson Nano Case (C) | √ | ||||||
| Jetson Nano Case (A) | √ | ||||||
| Jetson Nano Case (F) | √ |

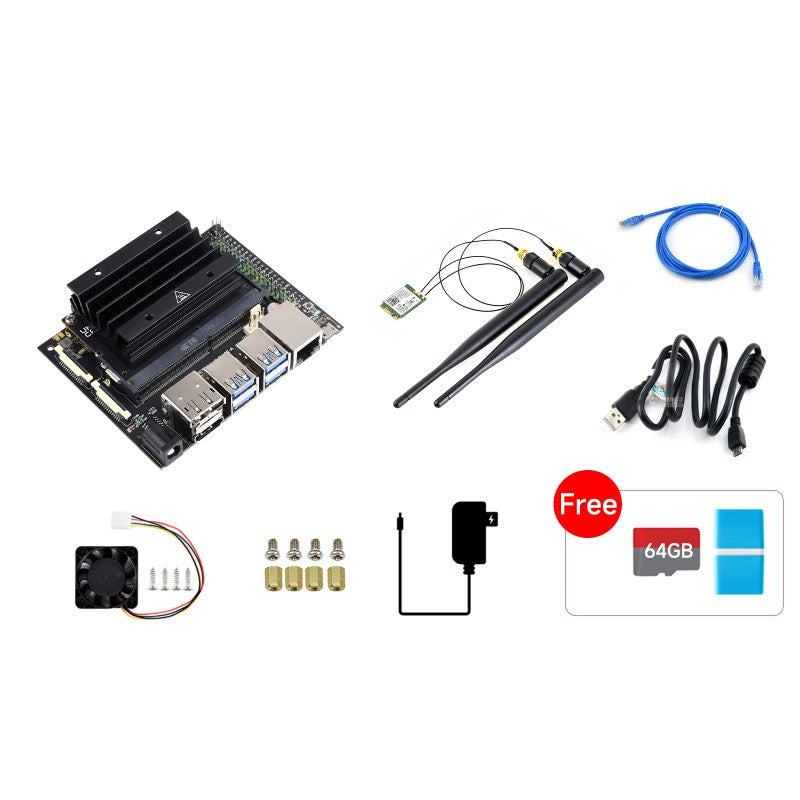

JETSON-NANO-DEV-KIT-A: wireless NIC kit
With drive-free 5G (867 Mbps) / 2.4 G (300 Mbps) wireless NIC, it supports Bluetooth and WiFi dual modes, and 6DB high-gain dual antennas effectively improve penetration, and make data transmission wider and smoother, which is suitable for mobile networking scenarios. Note that only the Jetson Nano system is drive-free.
JETSON-NANO-DEV-KIT-B: single camera vision kit
If you want to play AI intelligent applications such as face recognition, road sign recognition and license plate recognition, this package is very suitable for you. With an 8 megapixel (3280 x 2464) high-definition camera, it can be used easily in various application scenarios.
JETSON-NANO-DEV-KIT-C: touch display kit
If the single camera vision package can't meet the requirements, this package with 7-inch IPS touch screen is undoubtedly a better choice. The 1024 x 600 pixel screen can display the images taken by the camera in real time. If you are a beginner, you can also benefit from the graphical operating system, killing two birds with one stone.
JETSON-NANO-DEV-KIT-D: binocular vision kit
In addition to realizing AI applications such as face recognition, road marking line recognition and license plate recognition of conventional single camera, Binocular cameras can achieve effects that single camera can't, For example, binocular parallax algorithm ranging, stereo vision, depth vision, and VR video recording. This package is equipped with an 8 megapixel (3280 x 2464, each channel) IMX219 camera. On the basis of basic camera functions, it also has additional functions such as gyroscope, accelerometer and magnetometer. Sounds not bad?!
JETSON-NANO-DEV-KIT-E: binocular all-in-one kit
It is a good idea to add an aluminum alloy case on the basis of binocular vision package, and all accessories into the mini box. The camera bracket rotating at 180 degrees is one of its major features. The whole case is firm, dustproof and beautiful, and it also has good performance in heat dissipation capability.
JETSON-NANO-DEV-KIT-F: acrylic case kit
Give the lovely host an acrylic case. Compared with the bulkiness of aluminum alloy case, acrylic is light and concise, which can play a basic protective role.
JETSON-NANO-DEV-KIT-G: aluminum alloy case kit
On the basis of package A, add a dedicated Jetson Nano aluminum alloy case. In addition to better protection, the aluminum alloy case reserved more airflow vents, which can provide good heat dissipation and protection at the same time.
