X516C: Spartan-6 XC6SLX16 (FPGA Development Board + USB Downloader)

X516C: Spartan-6 XC6SLX16 (FPGA Development Board + USB Downloader)

$10.00 USD
$10.00 USD
Sale Sold out
Brand ALINX
Ram Memory Installed Size 256 MB
Connectivity Technology USB
Wireless Communication Standard Bluetooth
RAM Memory Technology DDR4

ALINX AX516: Spartan-6 XC6SLX9 FPGA Development board is entry-level product, mainly for FPGA beginners. The AX516 industrial FPGA board includes all the basic components of hardware, and pre-verified reference designs, Gigabit Ethernet, PMOD Camera Interface, VGA, JTAG, UART, Micro SD Card Slot, 40-Pin Connectors (expansion opportunities with ALINX Module, such as AD/DA data acquisition module, camera and LCD module).

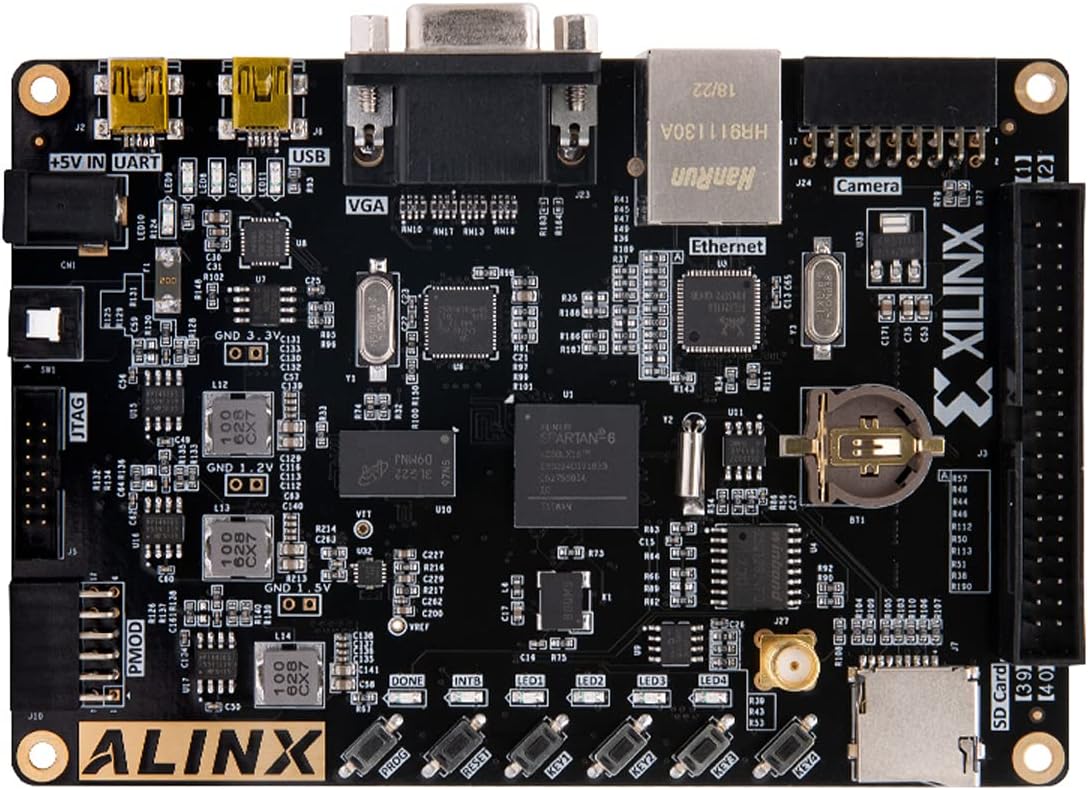

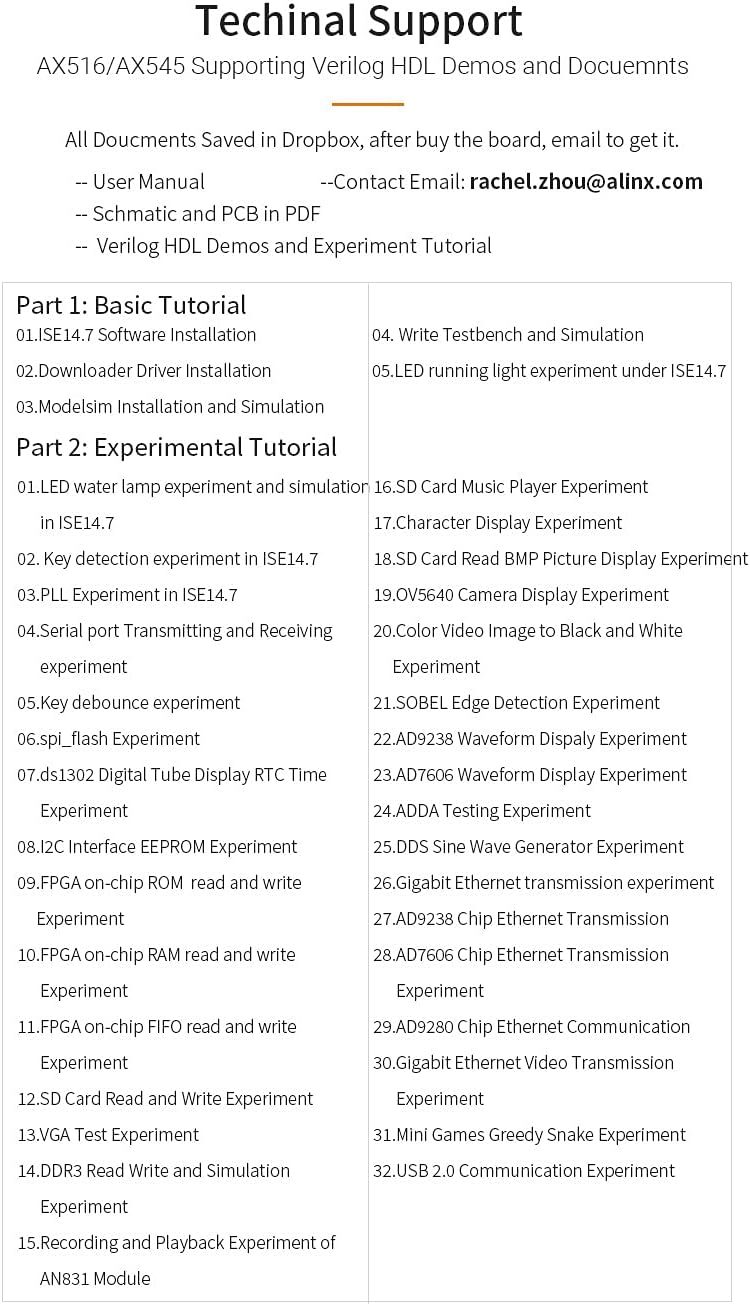

The AX516 FPGA Board is suitable for software radio, industrial control, multimedia applications, IC verification, parallel computing and other project development, and it can also be applied to college teaching, FPGA training, personal research learning and DIY, etc. Provide Verilog HDL Demos and Supporting Tutorials, Documents in PDF saved in the dropbox (Schematic, PCB, Chip Datasheet and User Manual)

Spartan-6 fpga

Key Features

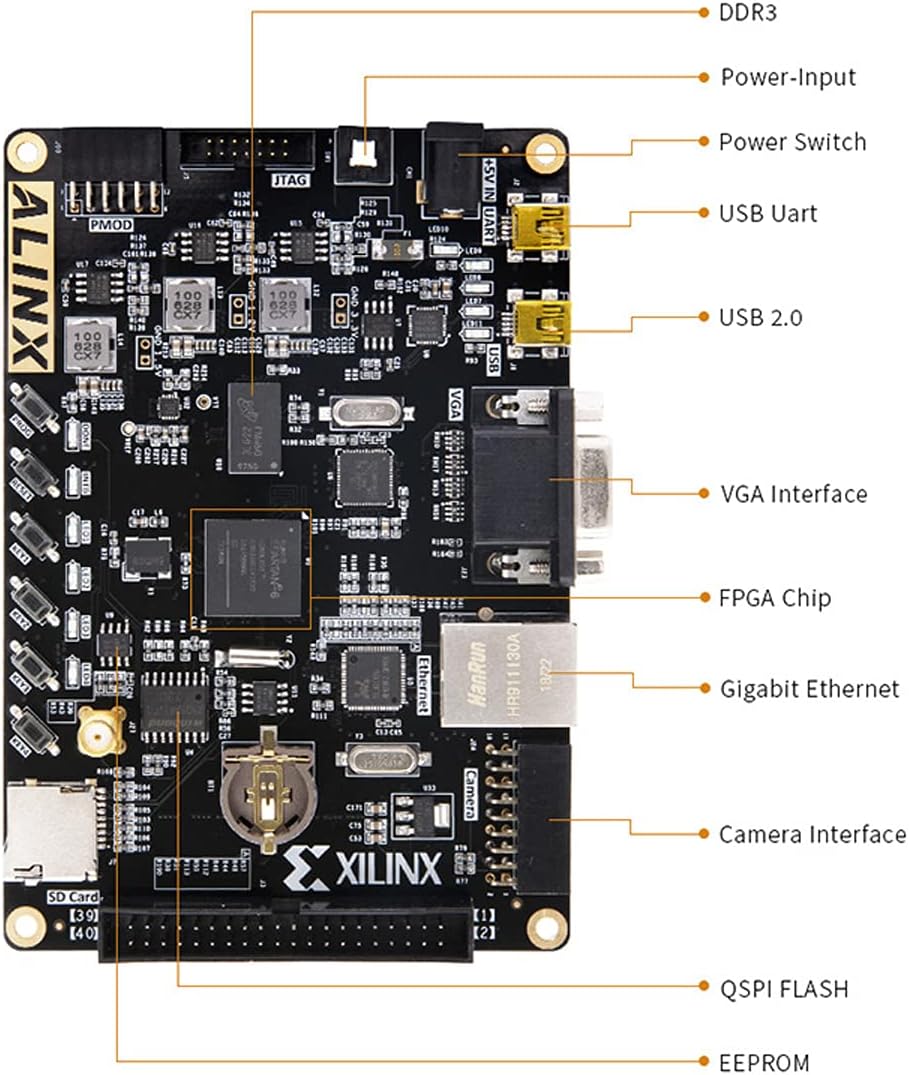

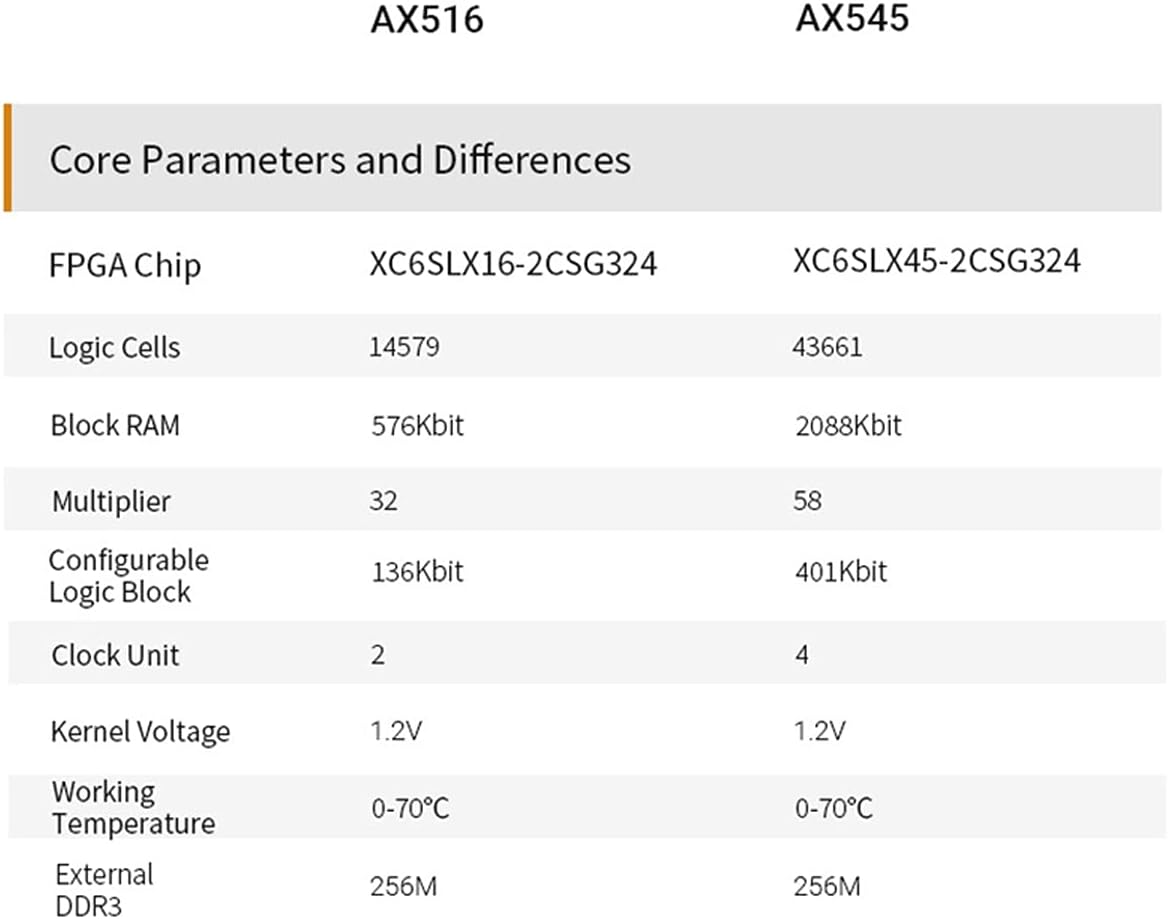

FPGA: Spartan-6 XC6SLX16-2CSG324C for AX516; Spartan-6 XC6SLX45-2CSG324C for AX545

Clocking: Fixed Oscillator with differential 50MHz output, used as the “system” clock for the FPGA

Memory: 128Mbit DDR3 DRAM (64M * 16bit), 16bit bus; Quad-SPI FLASH: 128 Mbit; IIC EEPROM 24LC04: 4Kbit (2*256*8bit); SD Card Slot

Communication & Networking

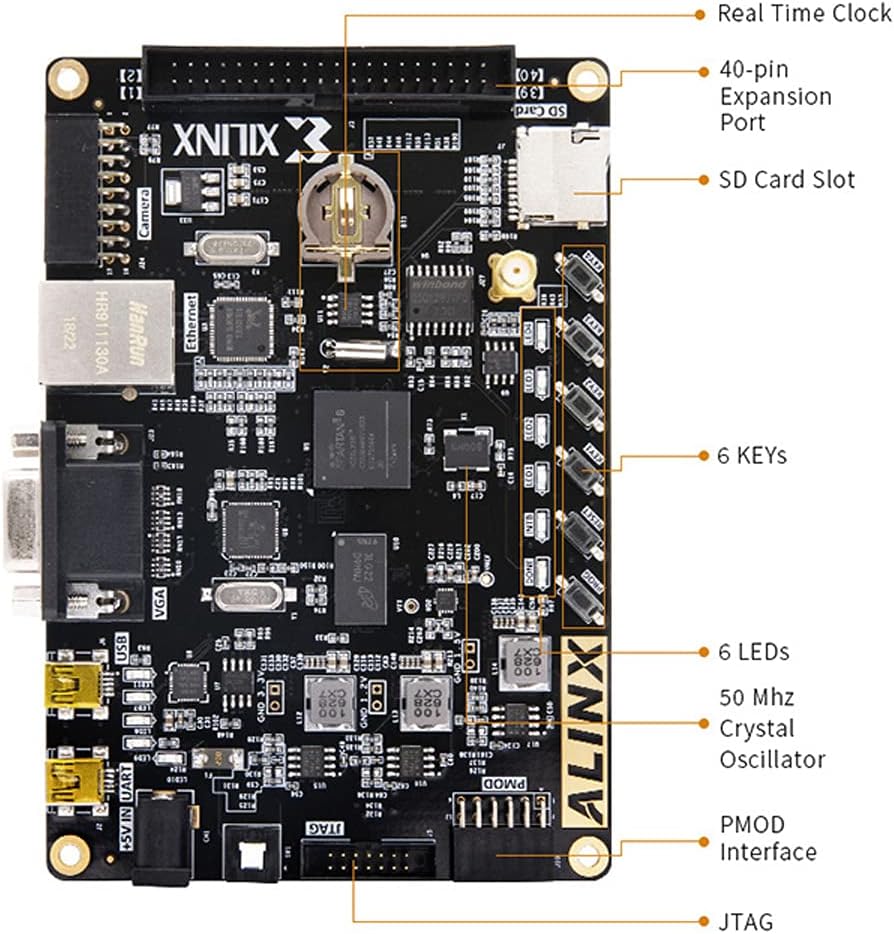

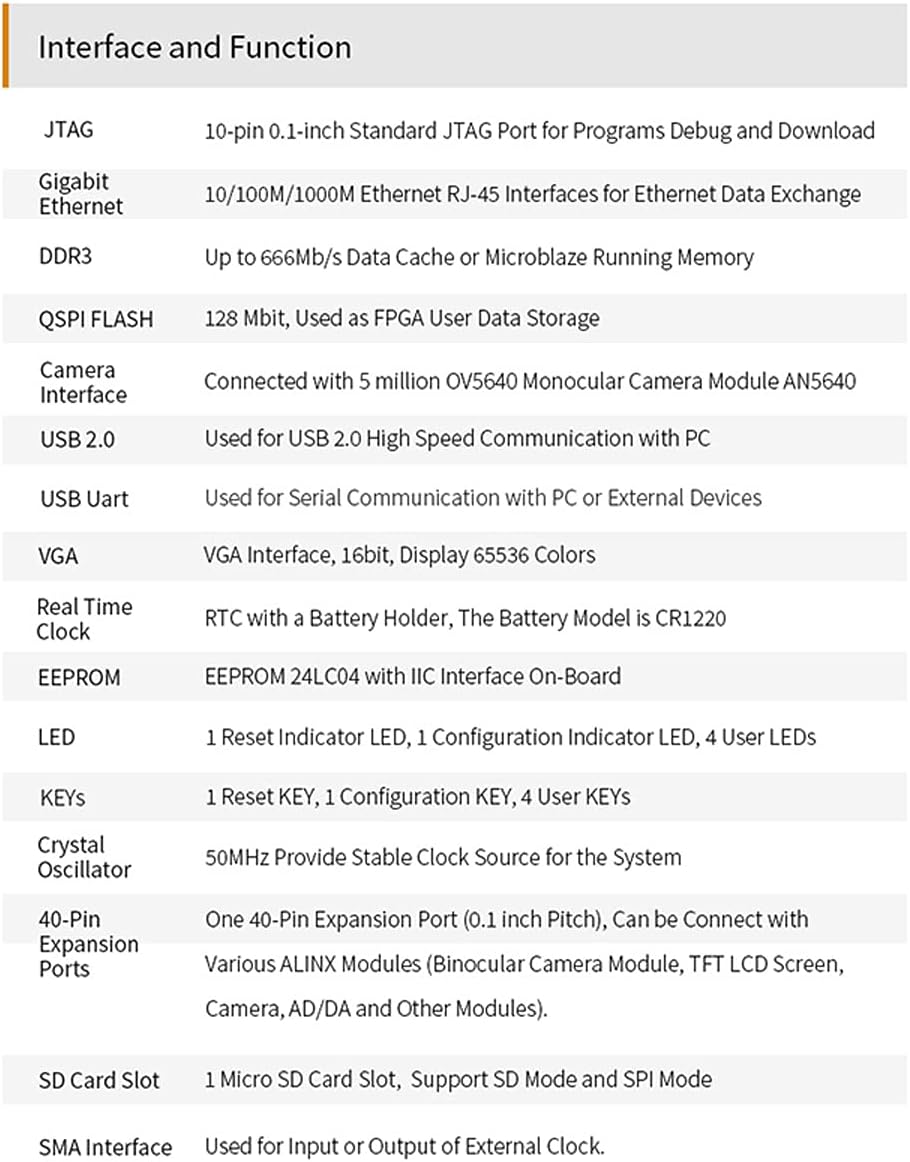

  • 10/100/1000 Mbps Ethernet (RGMII), Tri-Speed Ethernet PHY
  • USB-to-UART Bridge Connector
  • VGA Video Display interface
  • USB 2.0
  • 18-Pin CMOS cameral module interface
  • 12-Pin 0.1 inch spacing PMOD interface
  • Expansion Connectors: 0.1 inch spacing standard 40-pin expansion headers



Configuration: Onboard JTAG header provided for use with ALINX Brand Xilinx download cables such as the Platform Cable USB II

Display: 6 Keys, 6 LEDs ; Real Time Clock

Power: 5V 2A DC Adaptor

Microblaze and Verilog HLD Demos
Verilog HDL Demos
