X4010C: ALTERA Cyclone IV EP4CE10 Study Board Entry-Level (FPGA Board + USB Downloader)

$20.00
$20.00
Request For Quotation
×

Thank you. Your data has been successfully saved!


Brand ALINX
Ram Memory Installed Size 256 MB
Memory Storage Capacity 16 MB
Connectivity Technology USB
Wireless Communication Standard 802.11b

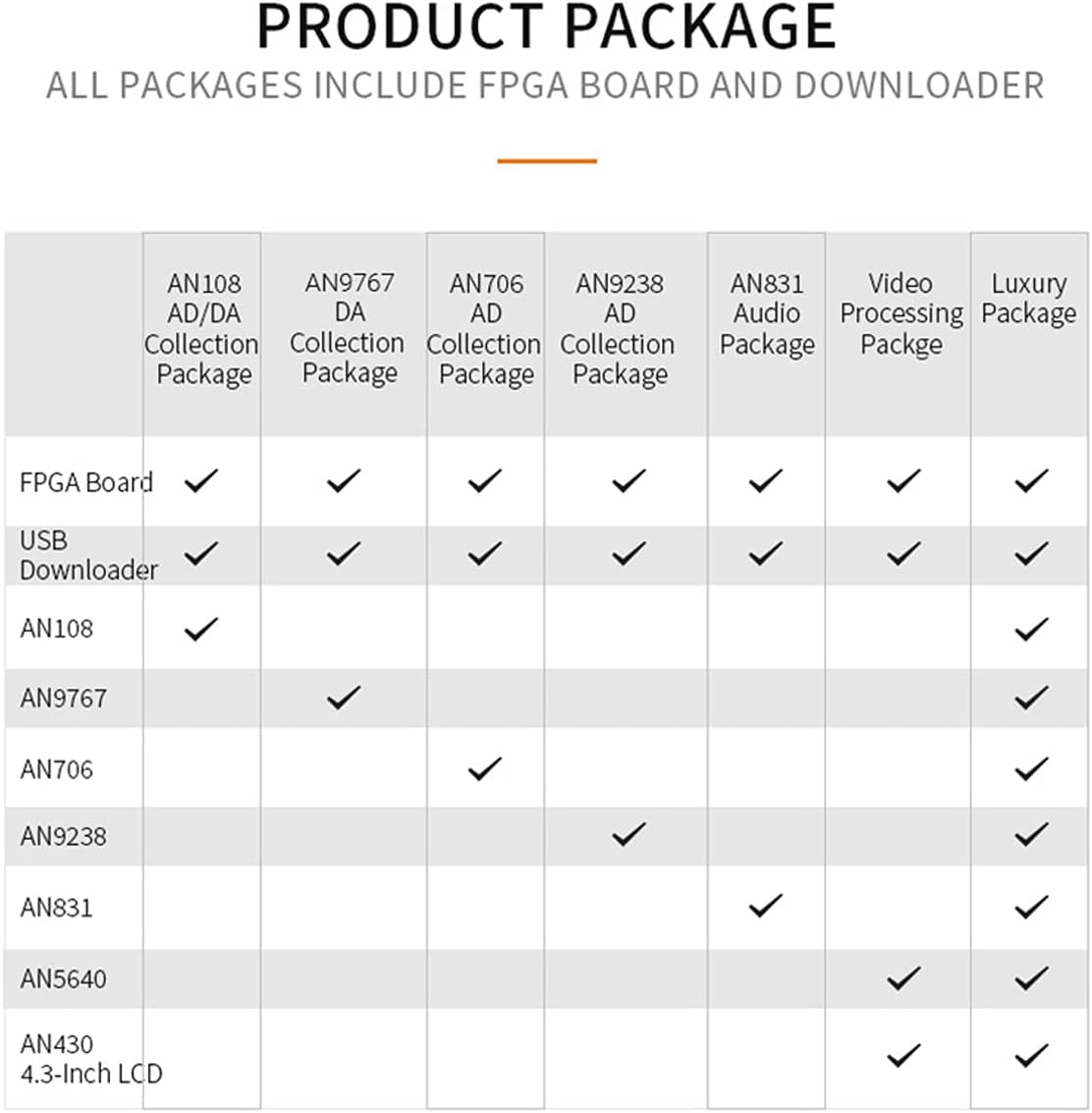

It is an entry-level FPGA Development Board Kits, mainly for beginners, Intel ALTERA Cyclone IV FPGA. Expand two 40-pins standard connectors, directly connect with ALINX modules, such as ADDA module, 4.3-inch LCD screen, audio module, camera module, etc., providing more choices for engineers. Open Study version of Schematic/ PCB file/ Schematic file and PCB Library (in Altium Format).

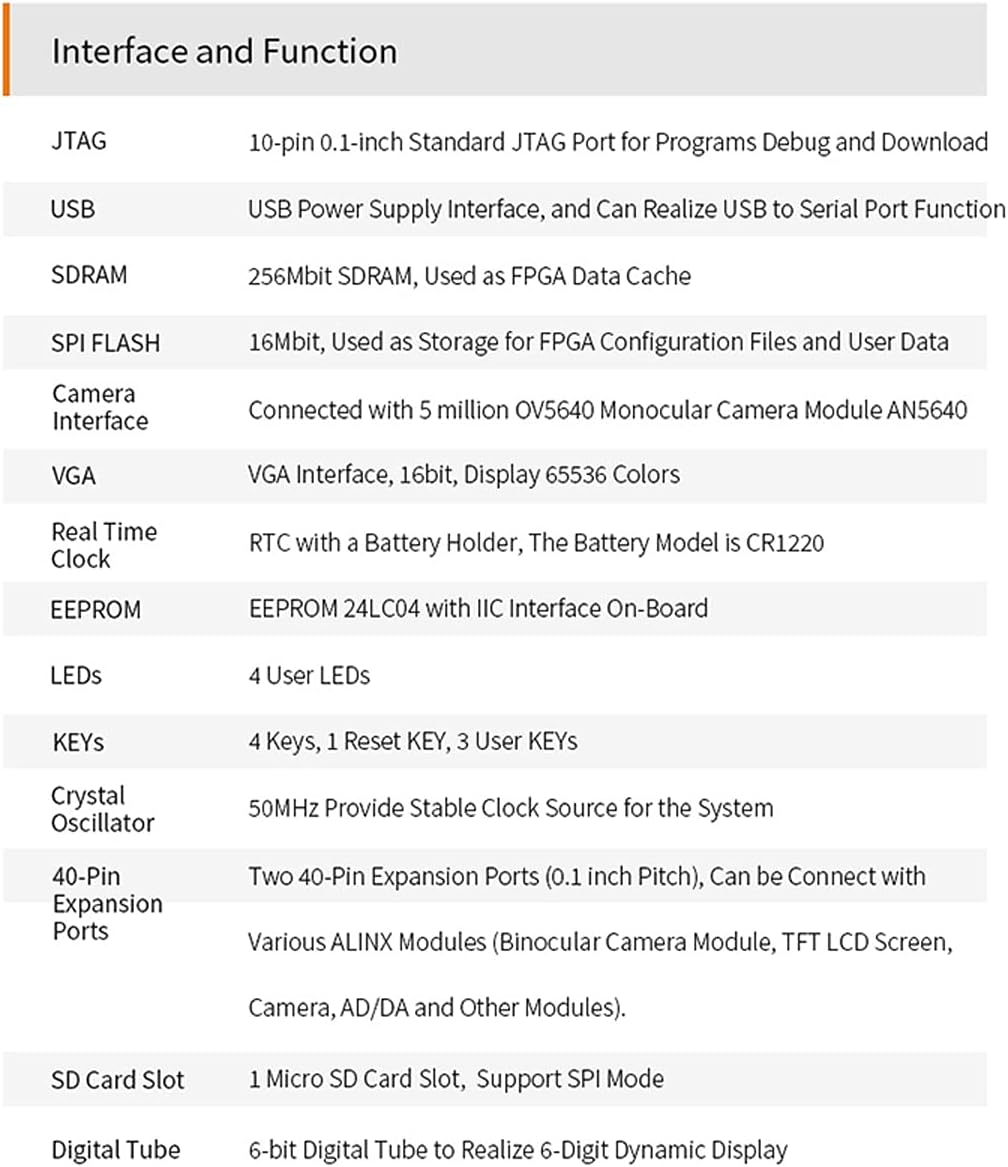

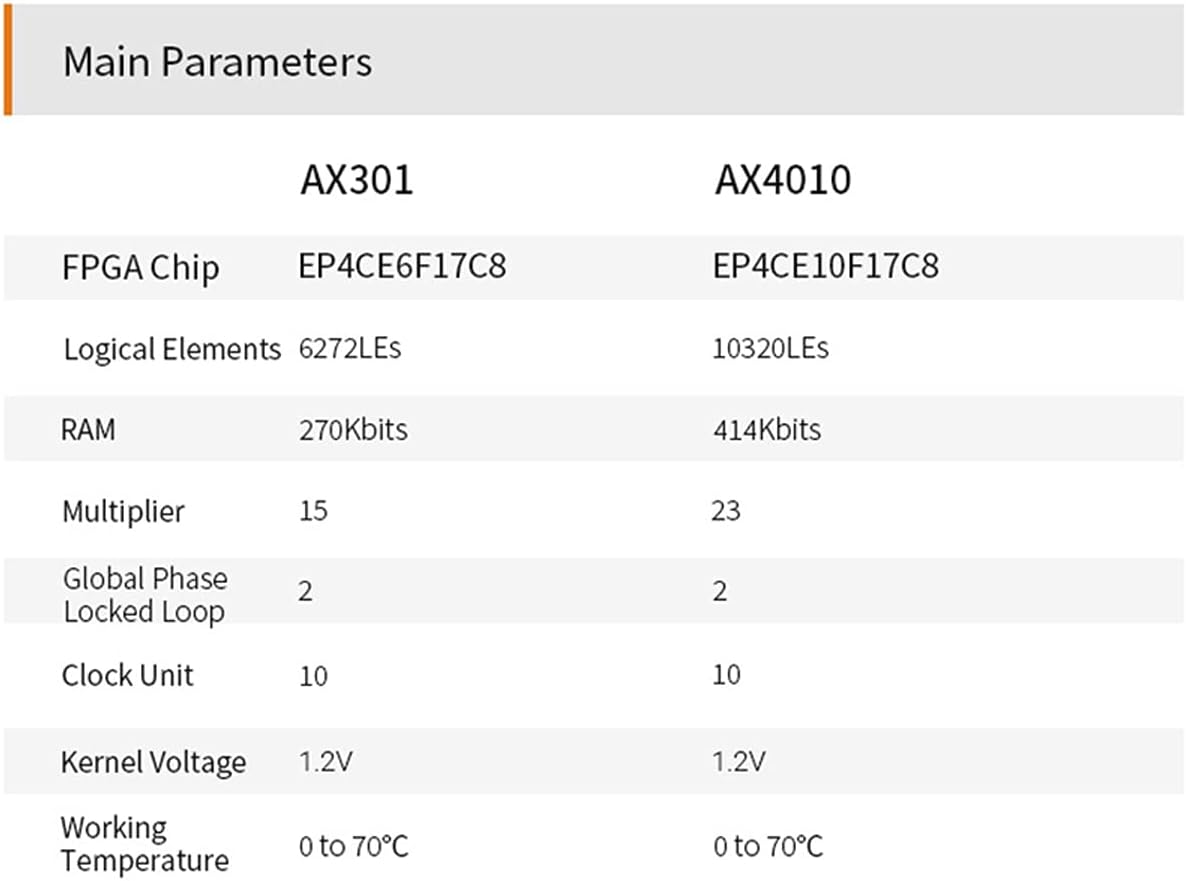

FPGA: ALTERA Cyclone IV EP4CE10F17C8

Clocking: Fixed Oscillator with differential 50MHz output, used as the “system” clock for the FPGA

Memory: 32MB SDRAM, 16 bit; 2MB SPI Flash; IIC EEPROM 24LC04: 4Kbit (2*256*8bit); SD Card Slot

Communication & Networking



  • USB-to-UART Bridge Connector
  • VGA Video Display interface
  • 18-pin CMOS camera module interface



Configuration: Onboard JTAG header provided for use with ALINX Brand Intel Altera download cables such as the Platform Cable USB

Expansion Connectors: 2-port 0.1 inch spacing standard 40-pin expansion headers

Display: 4 Keys, 4 User LEDs, Digital Tube

Real Time Clock

Buzzer

Power: Mini USB interface.

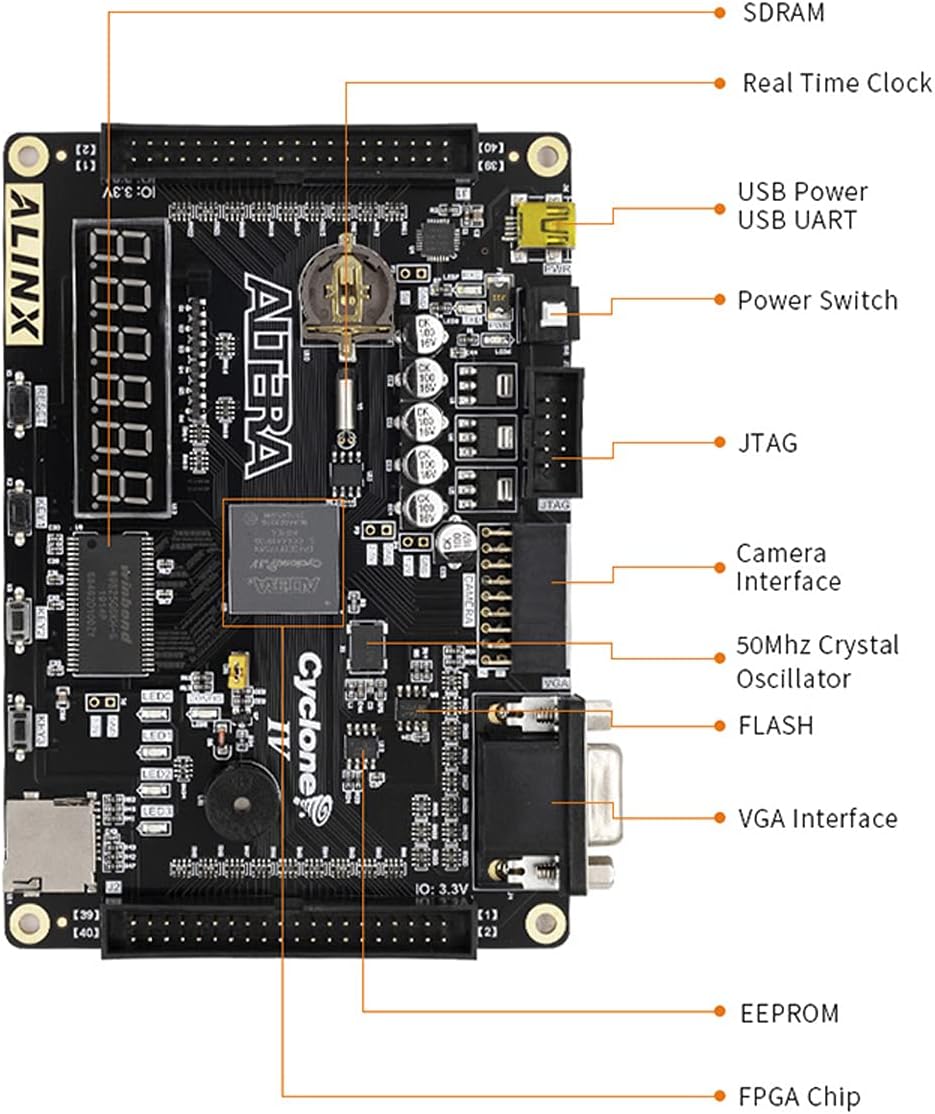

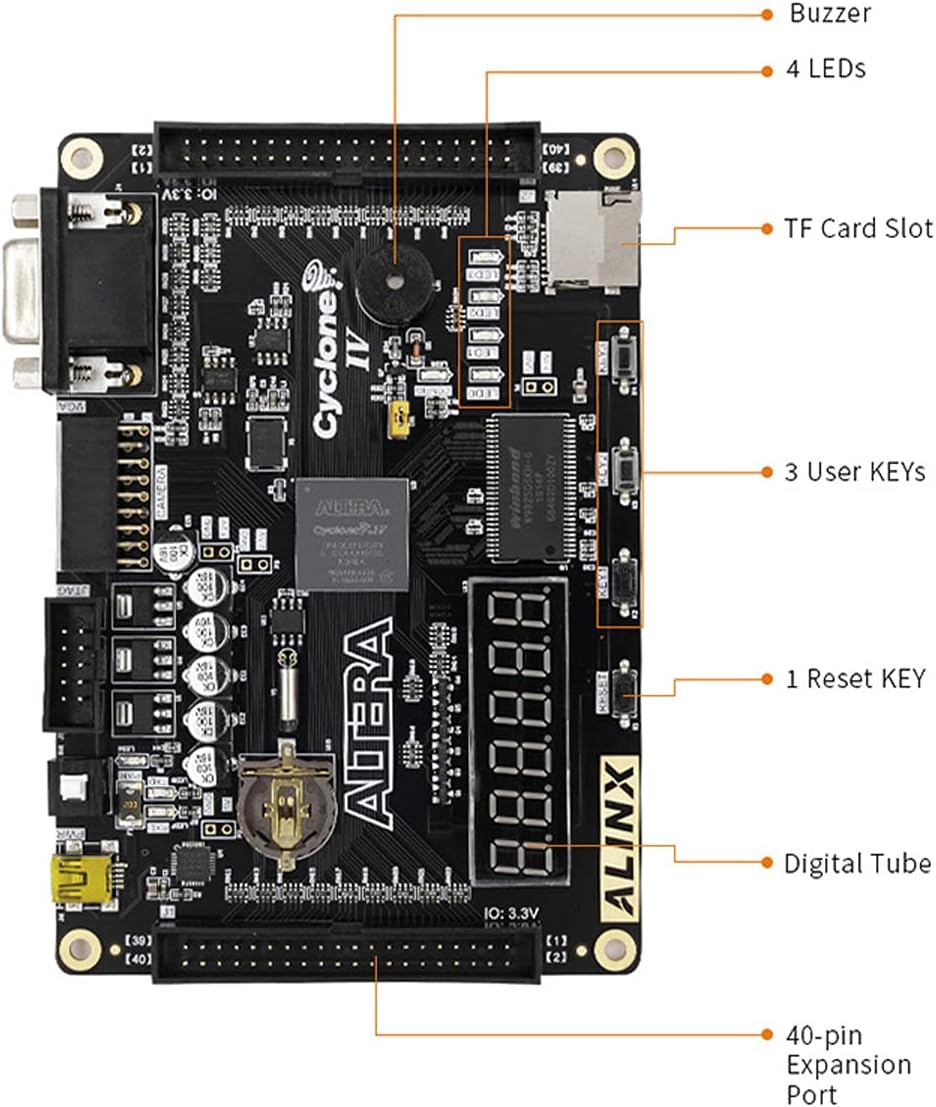

Hardware Detail

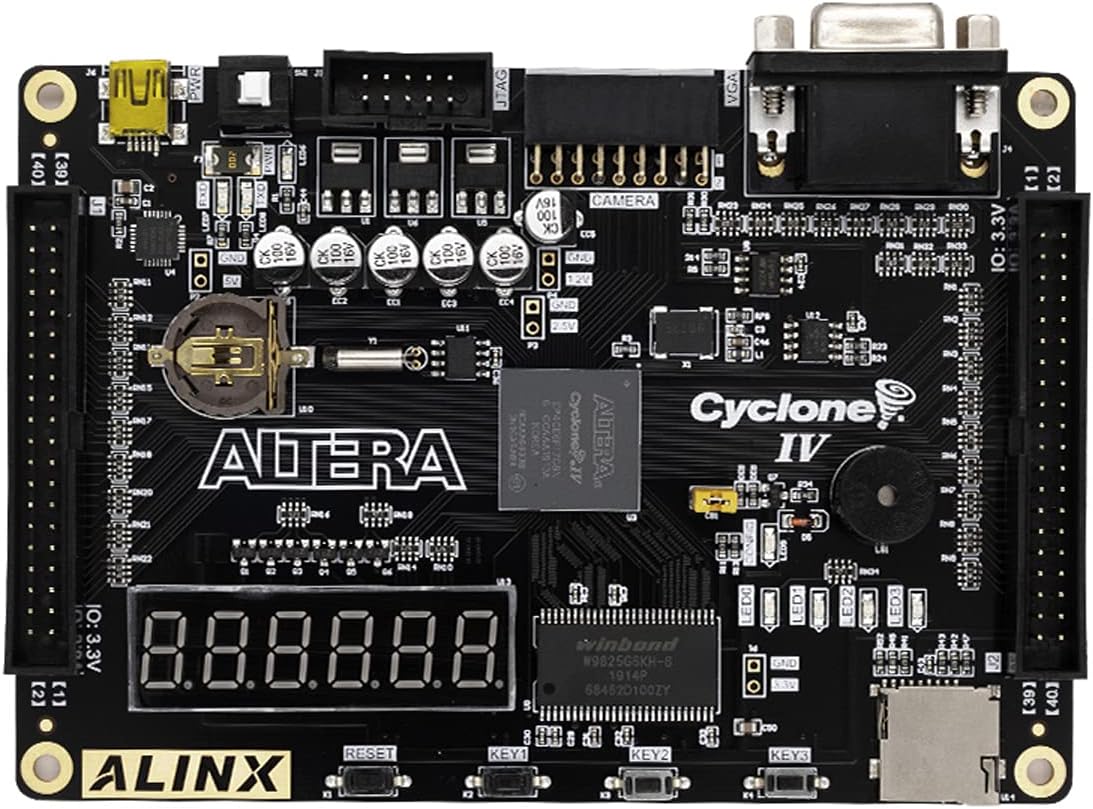

Cyclone IV fpga board

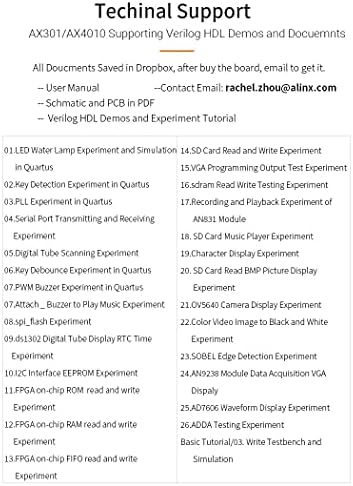

Verilog HDL Demos

Open these files, what can you learn from the documents ?



  • 4-layer PCB hierarchical design
  • BGA Encapsulated fan out mode
  • Design method of equal long line
  • Segmentation of power supply layer and stratum
  • Layout and wiring of device
  • FPGA Chip pin allocation method

All of these will make the beginner benefit a lot. That's what we need to do

×
