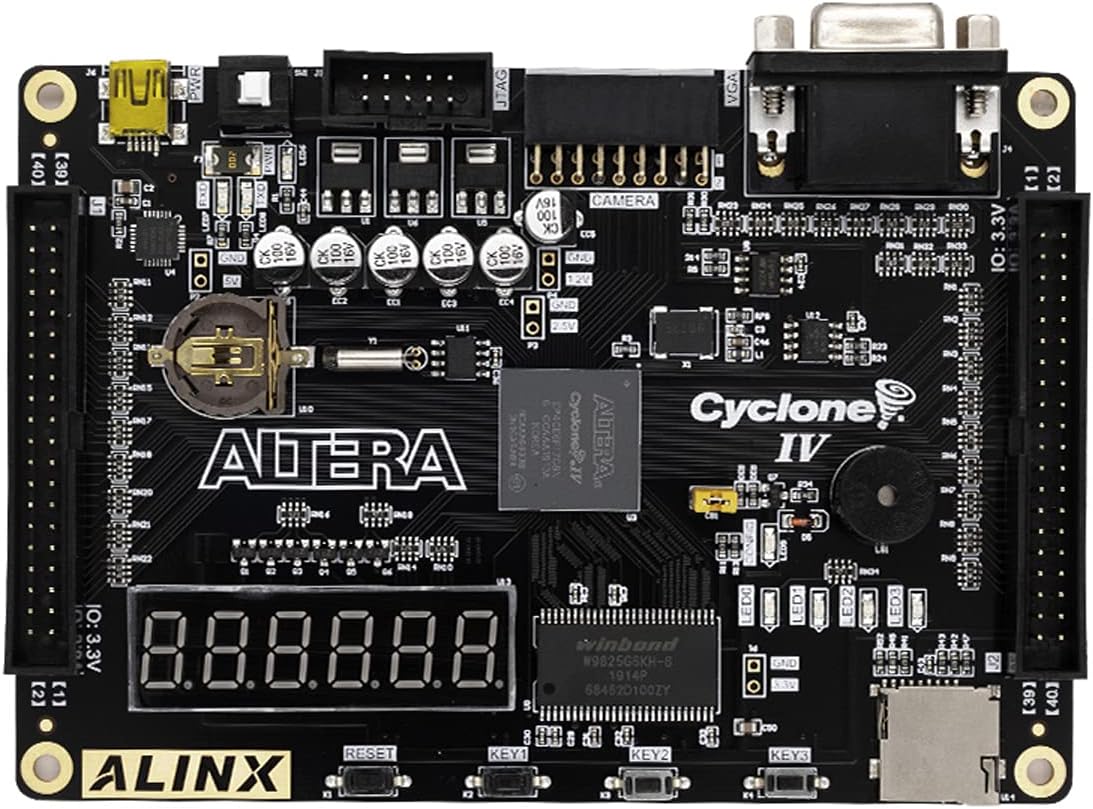

X301C: ALTERA Cyclone IV EP4CE6 (FPGA Development Board + USB Downloader)

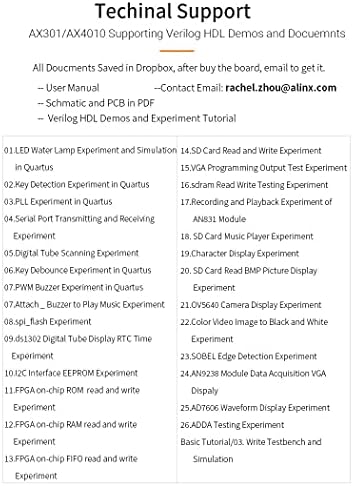

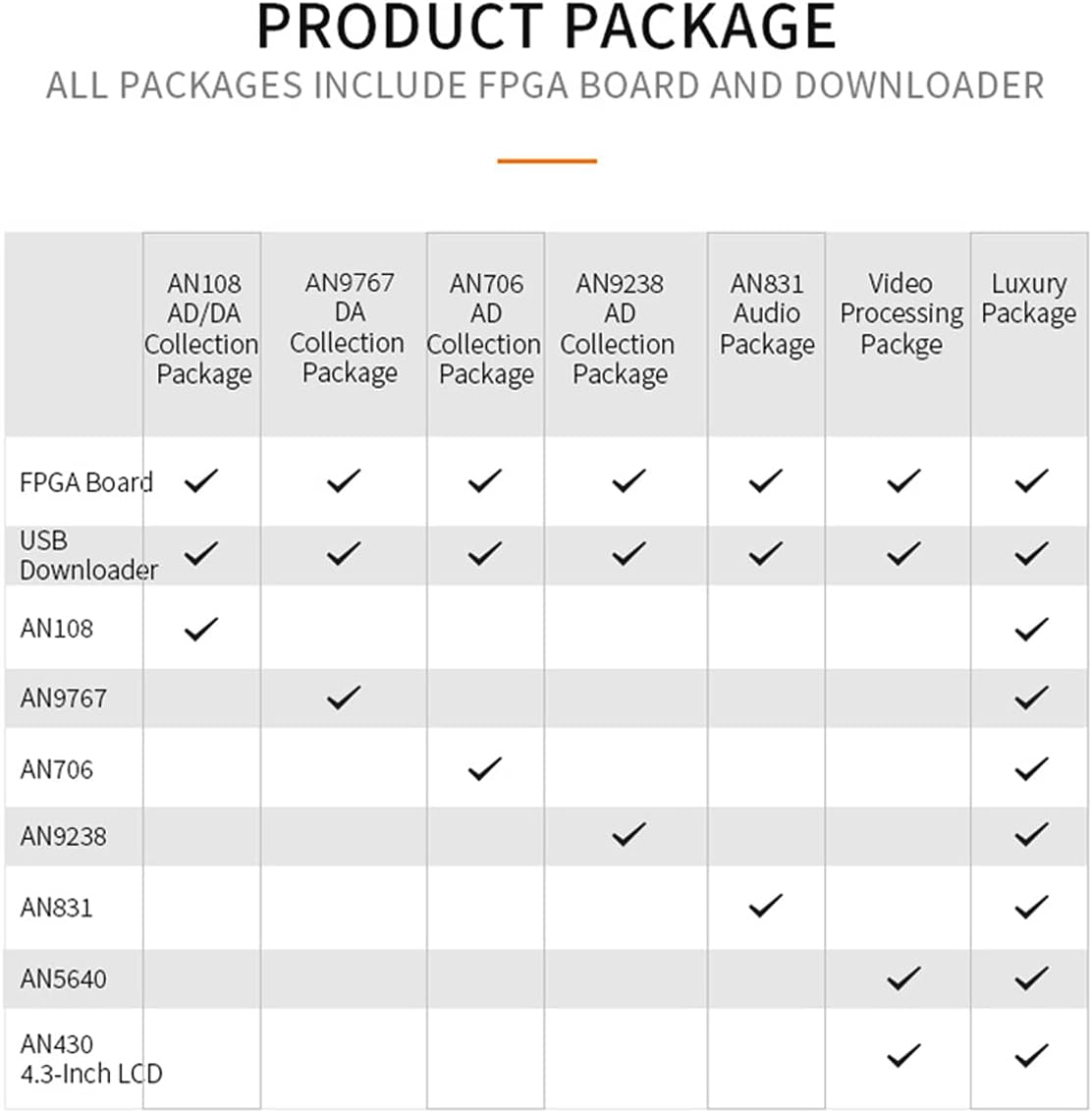

It is an entry-level FPGA Development Board Kits, mainly for beginners, Intel ALTERA Cyclone IV FPGA. Expand two 40-pins standard connectors, directly connect with ALINX modules, such as ADDA module, 4.3-inch LCD screen, audio module, camera module, etc., providing more choices for engineers. Open Study version of Schematic/ PCB file/ Schematic file and PCB Library (in Altium Format).

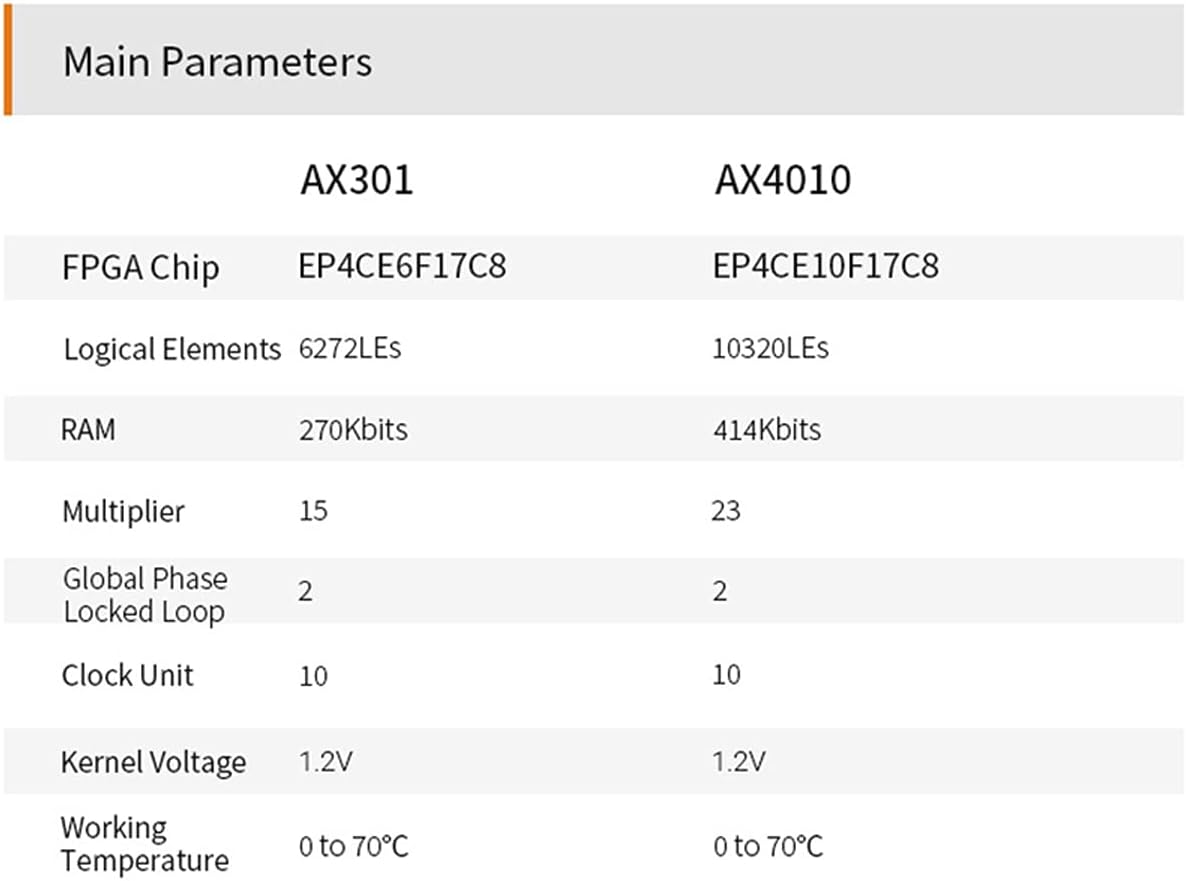

FPGA: Intel Altera Cyclone IV EP4CE6F17C8

Clocking: Fixed Oscillator with differential 50MHz output, used as the “system” clock for the FPGA

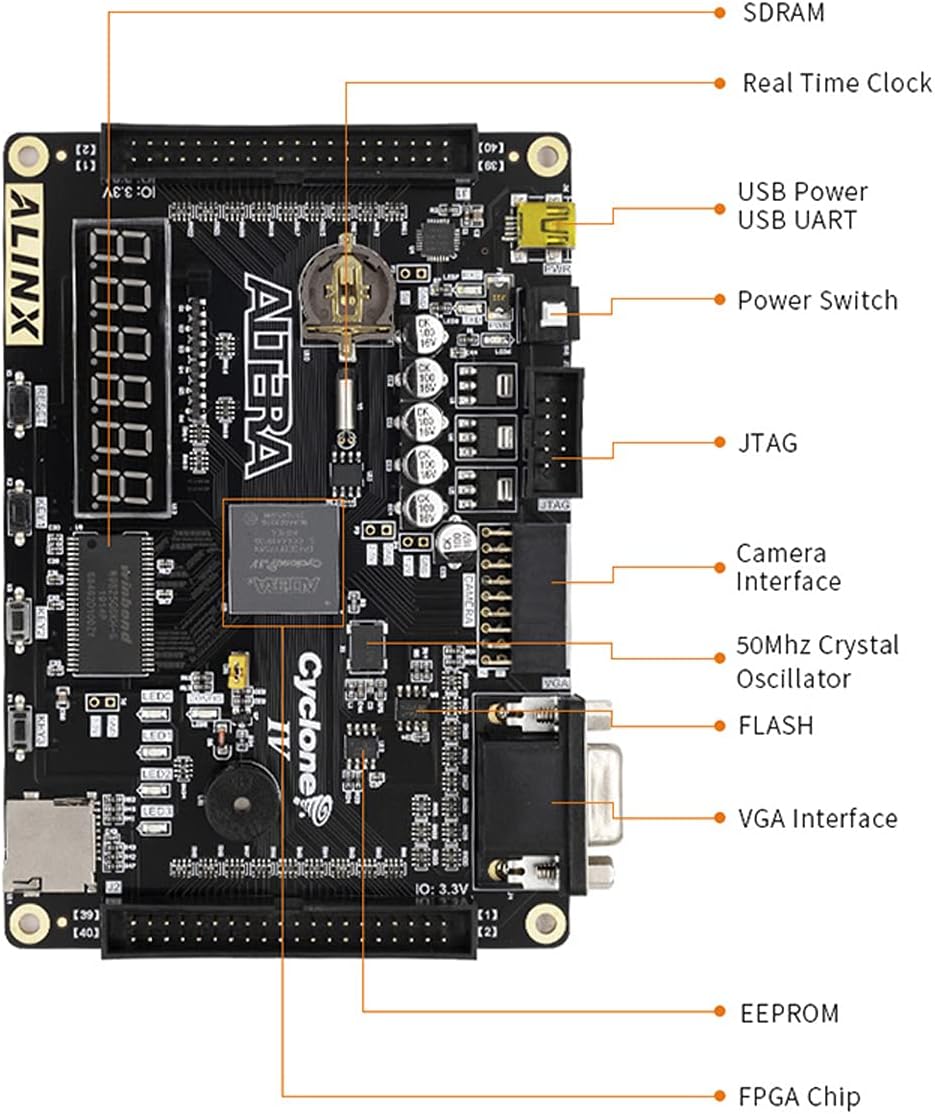

Memory:2 56Mbit SDRAM (16M * 16bit), 16bit bus; SPI Flash: 16Mbit; IIC EEPROM 24LC04: 4Kbit (2*256*8bit); SD Card Slot

Communication & Networking

• USB-to-UART Bridge Connector
• VGA Video Display interface
• 18-pin CMOS camera module interface

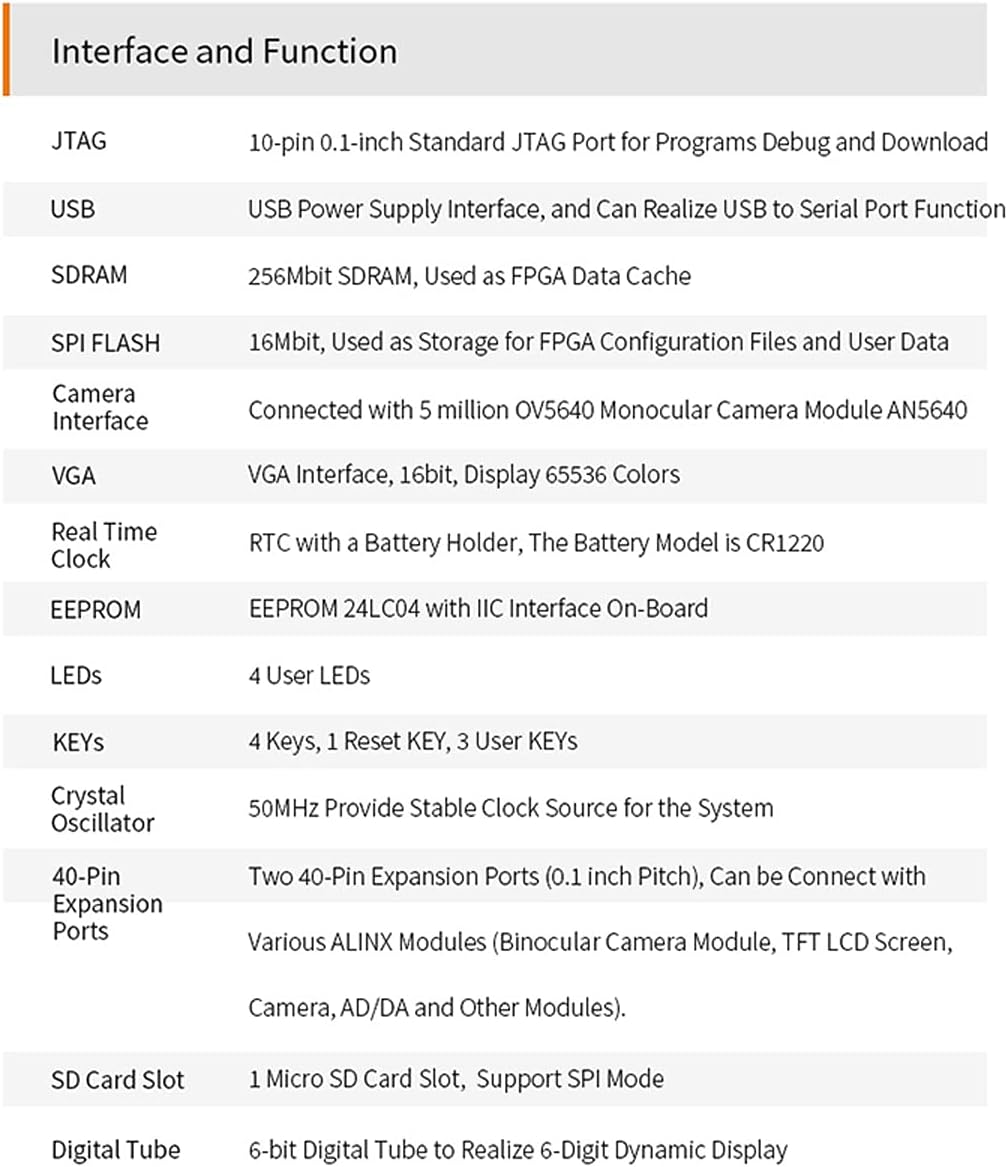

Configuration: Onboard JTAG header provided for use with ALINX Brand Intel Altera download cables such as the Platform Cable USB

Expansion Connectors: 2-port 0.1 inch spacing standard 40-pin expansion headers

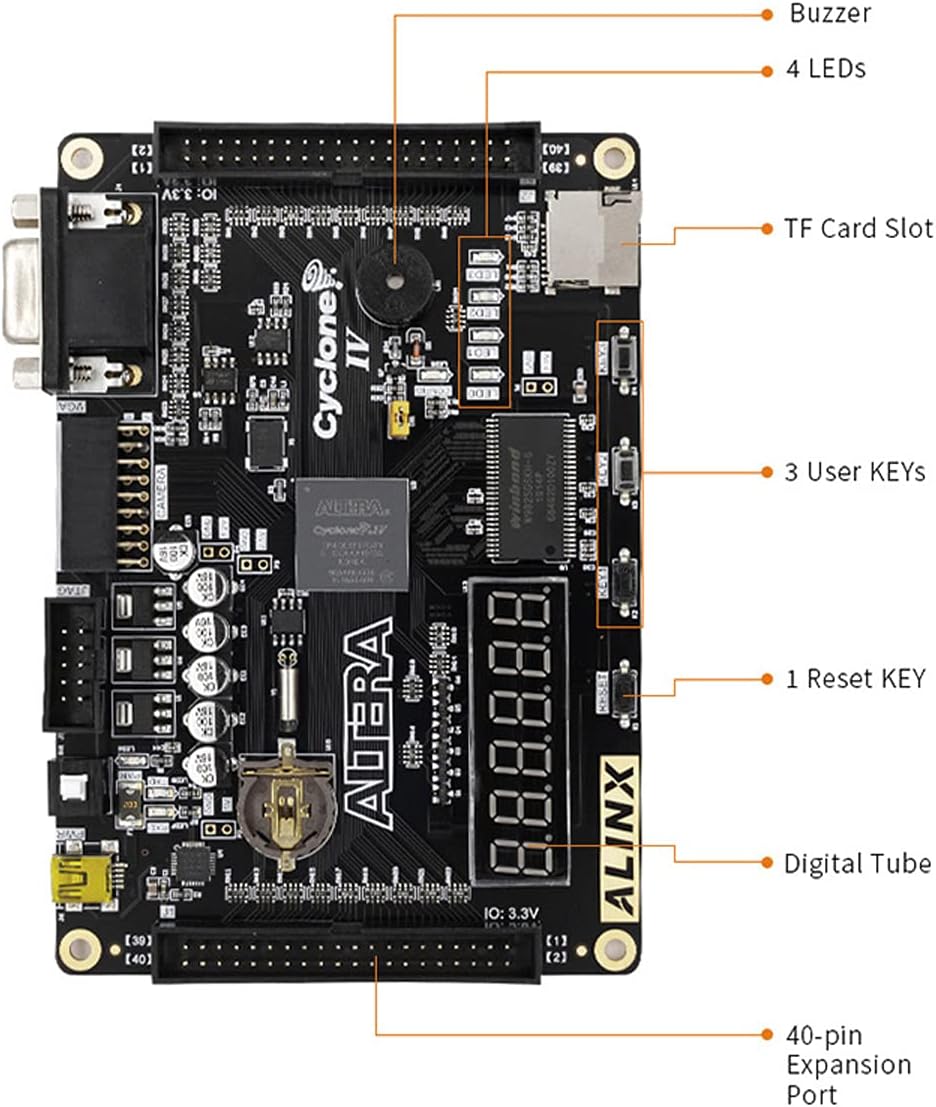

Display: 4 Keys, 4 User LEDs, Digital Tube

Real Time Clock

Buzzer

Power: Mini USB interface.
